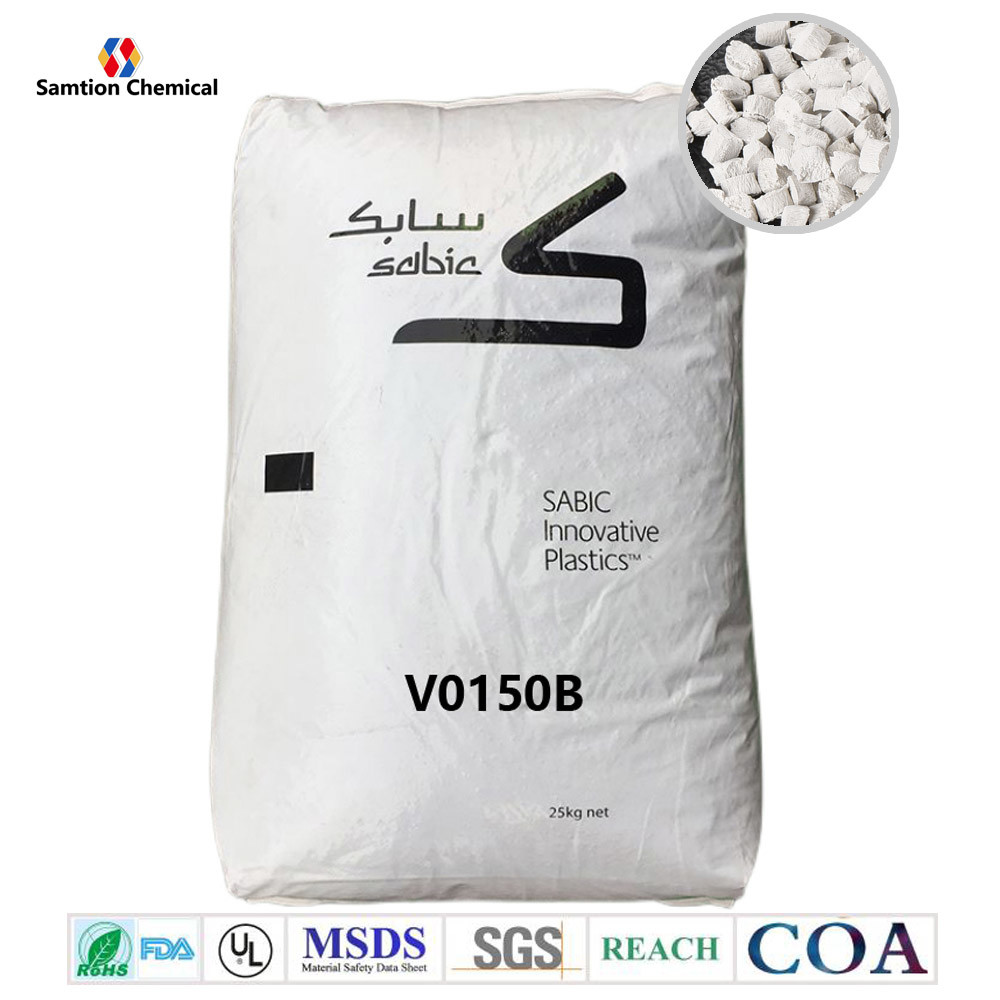

S-Plastics NoryL V0150B is an unfilled, injection moldable modified polyphenylene ether resin.. Designed for high heat resistance and thin wall FR
performance, this resin delivers a UL94 V0 rating at 1.5 mm and a UL94 5Va rating at 2.0 mm. Noryl V0150B is also halogen free
according to VDE/DIN 472 part 815 and may be an excellent material candidate where flame resistance and high temperature resistance
is required.
Property
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 70 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 60 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 7 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2500 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 105 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2550 | MPa | ASTM D 790 |
| Taber Abrasion, CS-17, 1 kg | 35 | mg/1000cy | S-Plastics Method |
| Tensile Stress, yield, 50 mm/min | 70 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 55 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 10 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2500 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 110 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2400 | MPa | ISO 178 |
| Hardness, H358/30 | 113 | MPa | ISO 2039-1 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 330 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 180 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 50 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 13 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 5 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 14 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 5 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 155 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 135 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 7.5E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.5E-05 | 1/°C | ASTM E 831 |
| Thermal Conductivity | 0.27 | W/m-°C | ISO 8302 |
| CTE, 23°C to 80°C, flow | 7.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 80°C, xflow | 9.E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Ball Pressure Test, approximate maximum | 140 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate A/50 | 160 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/50 | 145 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 155 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 140 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 130 | °C | ISO 75/Ae |
| Relative Temp Index, Elec | 110 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 115 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.11 | - | ASTM D 792 |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 280°C/5.0 kgf | 3.5 | g/10 min | ASTM D 1238 |
| Density | 1.11 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.18 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.06 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/5.0 kg | 10 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 1.E+15 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | >1.E+15 | Ohm | IEC 60093 |
| Dielectric Strength, in oil, 0.8 mm | 33 | kV/mm | IEC 60243-1 |
| Dielectric Strength, in oil, 1.6 mm | 26 | kV/mm | IEC 60243-1 |
| Dielectric Strength, in oil, 3.2 mm | 16 | kV/mm | IEC 60243-1 |
| Relative Permittivity, 50/60 Hz | 2.8 | - | IEC 60250 |
| Relative Permittivity, 1 MHz | 2.7 | - | IEC 60250 |
| Dissipation Factor, 50/60 Hz | 0.0009 | - | IEC 60250 |
| Dissipation Factor, 1 MHz | 0.003 | - | IEC 60250 |
| Comparative Tracking Index | 250 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 1.0 mm | 775 | °C | IEC 60695-2-13 |
| Glow Wire Ignitability Temperature, 2.0 mm | 775 | °C | IEC 60695-2-13 |
| Glow Wire Ignitability Temperature, 3.0 mm | 775 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 32 | % | ISO 4589 |
| Source GMD, last updated:01/19/2007 | |||
Processing
| Parameter | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 110 - 120 | °C | |
| Drying Time | 2 - 3 | hrs | |
| Melt Temperature | 300 - 320 | °C | |
| Nozzle Temperature | 280 - 300 | °C | |
| Front - Zone 3 Temperature | 300 - 320 | °C | |
| Middle - Zone 2 Temperature | 280 - 300 | °C | |
| Rear - Zone 1 Temperature | 260 - 280 | °C | |
| Hopper Temperature | 80 - 100 | °C | |
| Mold Temperature | 100 - 130 | °C | |
| Source GMD, last updated:01/19/2007 | |||
|
For more information please see below |
|
 |
S-Plastics Resina Noryl V0150B.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
S-Plastics Noryl Resin Application
|
S-Plastics Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the S-Plastics company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.S-Plastics Noryl PPO include: |
|
|
| 3. Chemical resistance: S-Plastics Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: S-Plastics Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: S-Plastics Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
||
