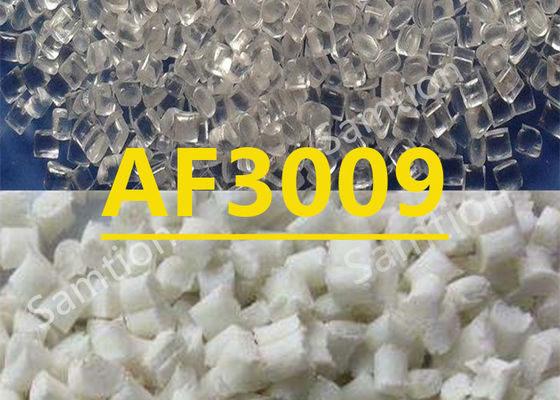

S-Plastics Verton AF3009 resin is a compound based on Acrylonitrile Butadiene Styrene resin containing Glass Fiber, Flame Retardant. Added
features of this material include: Antistat, Flame Retardant.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 42 | MPa | ASTM D 638 |
| Tensile Stress, break | 42 | MPa | ASTM D 638 |
| Tensile Stress, yld, Type I, 5 mm/min | 43 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 42 | MPa | ASTM D 638 |
| Tensile Strain, yield | 1.8 | % | ASTM D 638 |
| Tensile Strain, break | 1.9 | % | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1.8 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 4130 | MPa | ASTM D 638 |
| Flexural Stress | 55 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 59 | MPa | ASTM D 790 |
| Flexural Modulus | 3440 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3450 | MPa | ASTM D 790 |
| Tensile Stress, yield | 43 | MPa | ISO 527 |
| Tensile Stress, break | 42 | MPa | ISO 527 |
| Tensile Stress, yield, 5 mm/min | 43 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 42 | MPa | ISO 527 |
| Tensile Strain, yield | 1.8 | % | ISO 527 |
| Tensile Strain, break | 1.8 | % | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.8 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3620 | MPa | ISO 527 |
| Flexural Stress | 61 | MPa | ISO 178 |
| Flexural Stress, yield, 2 mm/min | 61 | MPa | ISO 178 |
| Flexural Modulus | 3200 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 3200 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 224 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 32 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 4 | J | ASTM D 3763 |
| Multiaxial Impact | 1 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 15 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 3 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 96 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 87 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.36E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 6.12E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 9.4E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 6.2E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, flow | 9.4E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 6.2E-05 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 98 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 90 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.31 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 2 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.8 - 1 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.9 - 1.1 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.93 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1 | % | ISO 294 |
| Density | 1.31 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+01 - 1.E+03 | Ohm | ASTM D 257 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 1.5 | mm | UL 94 by GE |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| Source GMD, last updated:09/24/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 70 - 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 - 0.1 | % |
| Melt Temperature | 200 - 210 | °C |
| Front - Zone 3 Temperature | 205 - 215 | °C |
| Middle - Zone 2 Temperature | 195 - 205 | °C |
| Rear - Zone 1 Temperature | 180 - 195 | °C |
| Mold Temperature | 10 - 50 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:09/24/2008 | ||
