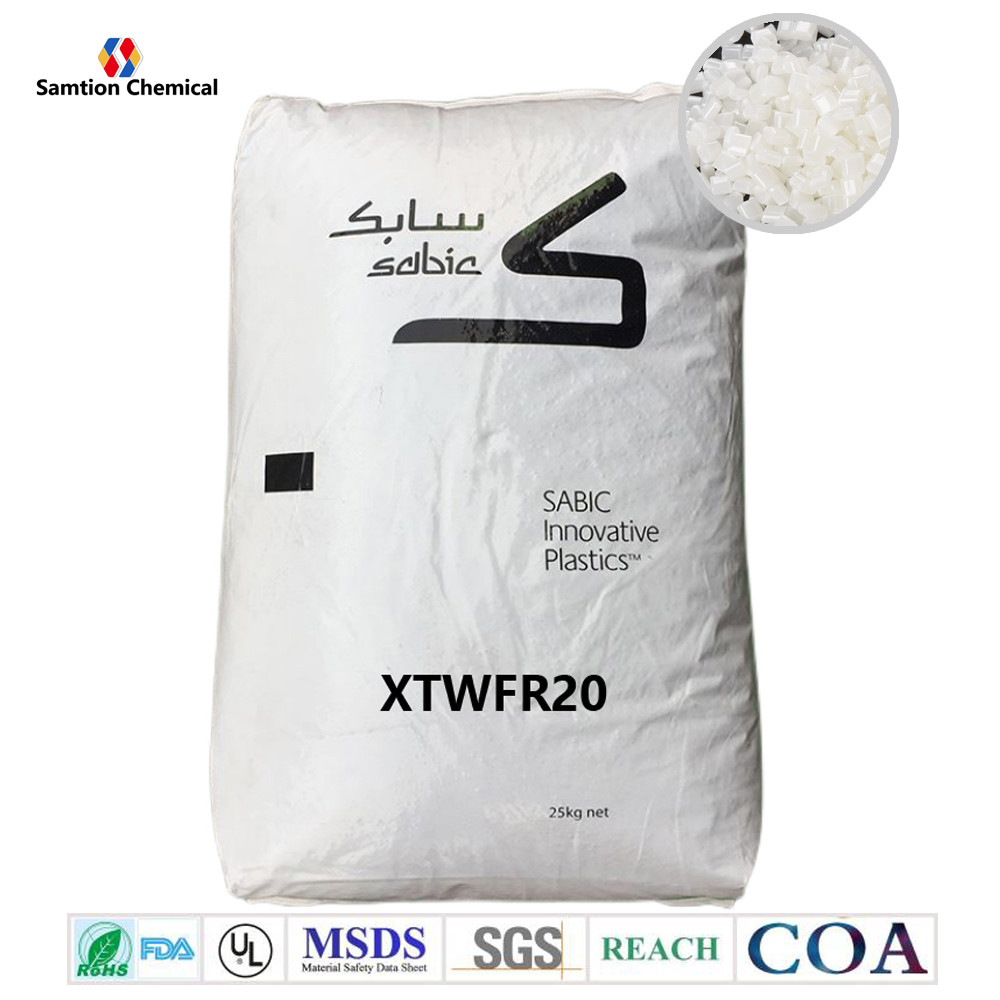

S-Plastics Geloy XTWFR20 resin is a Flame Retardant ASA grade, offering good indoor UV performance and heat aging properties. This product typically offers better UV performance than most FR ABS grades.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 46 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 34 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 2.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 11 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2220 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 64 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2070 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 44 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 36 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 2.6 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2150 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 62 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2100 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 70 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 20 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 7 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 3 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 8 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 85 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 76 | °C | ASTM D 648 |
| CTE, -40°C to 60°C, flow | 9.8E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 60°C, xflow | 9.8E-05 | 1/°C | ASTM E 831 |
| CTE, 23°C to 60°C, flow | 9.7E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 9.9E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate A/50 | 102 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/50 | 89 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 90 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 86 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 77 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.2 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 220°C/10.0 kgf | 30 | g/10 min | ASTM D 1238 |
| Density | 1.2 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.45 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.16 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 27 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Dielectric Strength, in oil, 0.8 mm | 41 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 24 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 3.2 mm | 18 | kV/mm | ASTM D 149 |
| Relative Permittivity, 1 kHz | 3.4 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.2 | - | ASTM D 150 |
| Dissipation Factor, 1 kHz | 0.008 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.029 | - | ASTM D 150 |
| Volume Resistivity | >1.E+15 | Ohm-cm | IEC 60093 |
| Surface Resistivity, ROA | >1.E+16 | Ohm | IEC 60093 |
| Comparative Tracking Index, M | 600 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 3 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 1.5 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 2 | mm | IEC 60695-2-12 |
| Glow Wire Ignitability Temperature, 1.0 mm | 750 | °C | IEC 60695-2-13 |
| Oxygen Index (LOI) | 25 | % | ISO 4589 |
| Source GMD, last updated:01/08/2007 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 85 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 6 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 210 - 230 | °C |
| Nozzle Temperature | 200 - 220 | °C |
| Front - Zone 3 Temperature | 210 - 230 | °C |
| Middle - Zone 2 Temperature | 200 - 220 | °C |
| Rear - Zone 1 Temperature | 190 - 210 | °C |
| Mold Temperature | 60 - 70 | °C |
| Back Pressure | 0.3 - 1 | MPa |
| Screw Speed | 30 - 80 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:01/08/2007 | ||
|
For more information please download the datesheet |
|
 |
S-Plastics Geloy XTWFR20.pdf |
|
