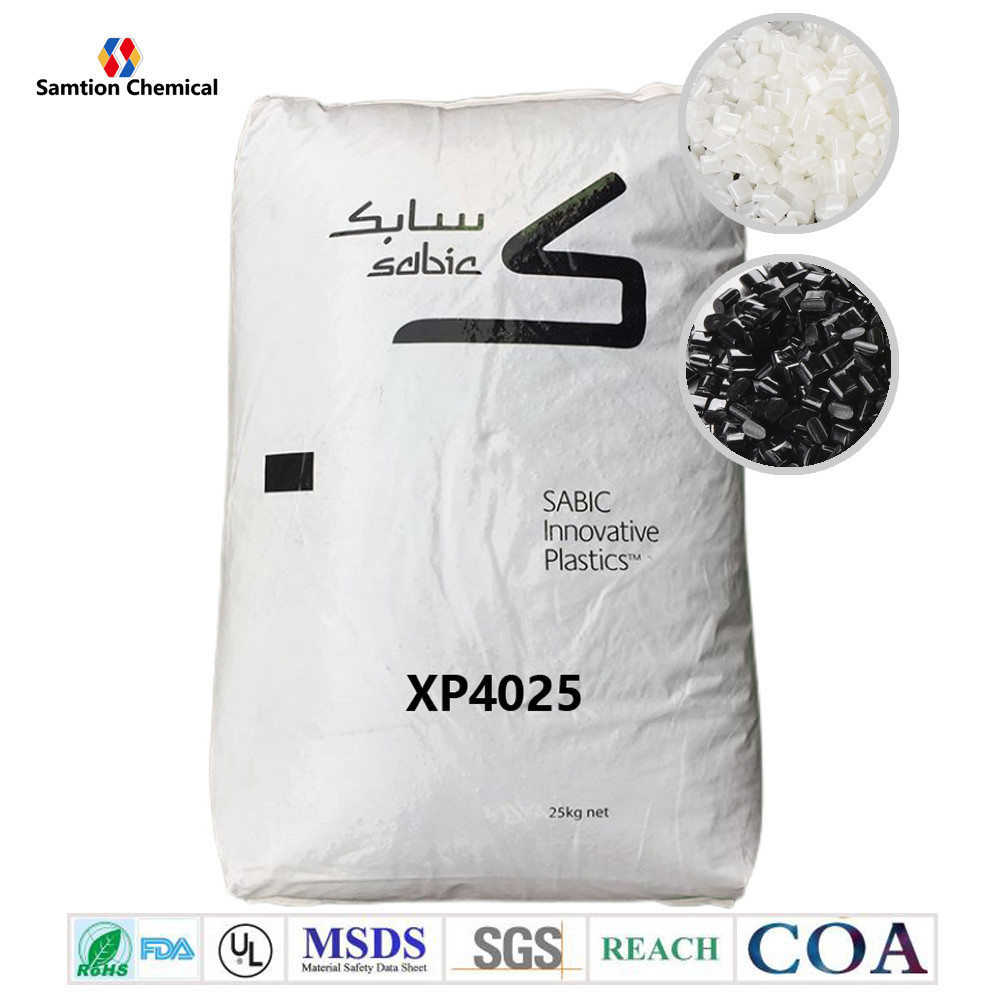

S-Plastics Geloy XP4025 resin is ASA+PC blend. Weatherable, injection grade. Available in a wide range of colors and is recommended for unpainted exterior applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 59 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 25 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 88 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2580 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 114 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 170 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 64 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 37 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, -30°C | 33 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 102 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 90 | °C | ASTM D 648 |
| CTE, -20°C to 150°C, flow | 7.2E-05 | 1/°C | ASTM E 831 |
| CTE, -20°C to 150°C, xflow | 7.2E-05 | 1/°C | ASTM E 831 |
| Thermal Conductivity | 0.25 | W/m-°C | ASTM C 177 |
| Relative Temp Index, Elec | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 50 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.14 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.24 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 260°C/5.0 kgf | 18 | g/10 min | ASTM D 1238 |
| OPTICAL | Value | Unit | Standard |
| Gloss, untextured, 60 degrees | 90 | - | ASTM D 523 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.47 | mm | UL 94 |
| Source GMD, last updated:01/05/2000 | |||
| • May be used in co-extrusion or monolayer. | ||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 90 - 100 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 255 - 270 | °C |
| Nozzle Temperature | 240 - 255 | °C |
| Front - Zone 3 Temperature | 245 - 260 | °C |
| Middle - Zone 2 Temperature | 240 - 255 | °C |
| Rear - Zone 1 Temperature | 230 - 250 | °C |
| Mold Temperature | 55 - 70 | °C |
| Back Pressure | 0.3 - 1 | MPa |
| Screw Speed | 30 - 80 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Parameter | ||
| Sheet Extrusion | Value | Unit |
| Drying Temperature | 90 - 100 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Minimum Moisture Content | 0.04 | % |
| Melt Temperature | 255 - 270 | °C |
| Barrel - Zone 1 Temperature | 220 - 230 | °C |
| Barrel - Zone 2 Temperature | 230 - 245 | °C |
| Barrel - Zone 3 Temperature | 245 - 255 | °C |
| Barrel - Zone 4 Temperature | 255 - 265 | °C |
| Adapter Temperature | 255 - 265 | °C |
| Die Temperature | 255 - 265 | °C |
| Roll Stack Temp - Top | 100 - 120 | °C |
| Roll Stack Temp - Middle | 95 - 110 | °C |
| Roll Stack Temp - Bottom | 75 - 90 | °C |
| Source GMD, last updated:01/05/2000 | ||
