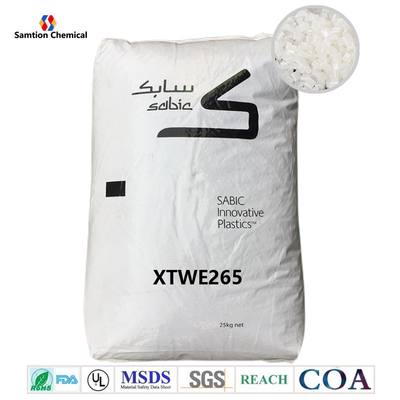

Sabic Geloy XTWE265 resin is Highly weatherable Geloy ASA profile extrusion grade for processes with simple or no calibration hardware.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 38 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 29 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 37 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 1870 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 56 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1880 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 37 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 29 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 40 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 1900 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 53 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 1900 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 260 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | - | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 35 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 26 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | - | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 18 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 82 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 84 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.2E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 1.3E-04 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.2E-04 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 1.3E-04 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 85 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 87 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 75 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.1 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | SABIC Method |
| Melt Flow Rate, 220°C/10.0 kgf | 5.2 | g/10 min | ASTM D 1238 |
| Density | 1.1 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.55 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/5.0 kg | 5 | cm³/10 min | ISO 1133 |
| Source GMD, last updated:03/09/2006 | |||
| Parameter | ||
| Profile Extrusion | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 3 - 6 | hrs |
| Drying Time (Cumulative) | 12 | hrs |
| Minimum Moisture Content | 0.02 | % |
| Melt Temperature | 225 - 255 | °C |
| Barrel - Zone 1 Temperature | 205 - 215 | °C |
| Barrel - Zone 2 Temperature | 215 - 230 | °C |
| Barrel - Zone 3 Temperature | 220 - 240 | °C |
| Barrel - Zone 4 Temperature | 225 - 245 | °C |
| Adapter Temperature | 225 - 245 | °C |
| Die Temperature | 225 - 245 | °C |
| Calibrator Temperature | 15 - 65 | °C |
| Source GMD, last updated:03/09/2006 | ||
