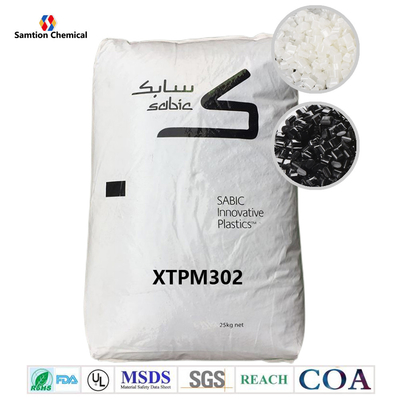

Sabic Geloy XTPM302 resin is a general purpose ASA/PC injection moulding grade, available in various colors.Typical properties measured on natural material.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 55 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 44 | MPa | ASTM D 638 |
| Tensile Stress, yld, Type I, 5 mm/min | 51 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 47 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 3.7 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 95 | % | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 3.6 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | >100 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2370 | MPa | ASTM D 638 |
| Tensile Stress, yield, 5 mm/min | 49 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 43 | MPa | ISO 527 |
| Tensile Stress, yield, 50 mm/min | 54 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 43 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.3 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 80 | % | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3.7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 55 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2370 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 80 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2300 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 485 | J/m | ASTM D 256 |
| Izod Impact, notched, 0°C | 285 | J/m | ASTM D 256 |
| Izod Impact, notched, -10°C | 175 | J/m | ASTM D 256 |
| Izod Impact, notched, -20°C | 140 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 105 | J/m | ASTM D 256 |
| Multiaxial Impact | 94 | J | ISO 6603 |
| Izod Impact, notched 80*10*4 +23°C | 28 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 0°C | 15 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -10°C | 11 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -20°C | 7 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 6 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 38 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 8 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*4 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| CTE, -40°C to 40°C, flow | 9.5E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 9.5E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, approximate maximum | 100 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate A/50 | 116 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/50 | 103 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 104 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 103 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 87 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.4 - 0.6 | % | SABIC Method |
| Density | 1.1 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.8 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.3 | % | ISO 62 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 10 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 240°C/5.0 kg | 10 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 27 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 2.5E+15 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 1.9E+16 | Ohm | ASTM D 257 |
| Dielectric Strength, in oil, 1.6 mm | 27.8 | kV/mm | ASTM D 149 |
| Dissipation Factor, 1 MHz | 0.0175 | - | ASTM D 150 |
| Source GMD, last updated:01/03/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 90 - 100 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 250 - 280 | °C |
| Nozzle Temperature | 230 - 270 | °C |
| Front - Zone 3 Temperature | 240 - 280 | °C |
| Middle - Zone 2 Temperature | 230 - 270 | °C |
| Rear - Zone 1 Temperature | 220 - 260 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 50 - 80 | °C |
| Source GMD, last updated:01/03/2005 | ||
