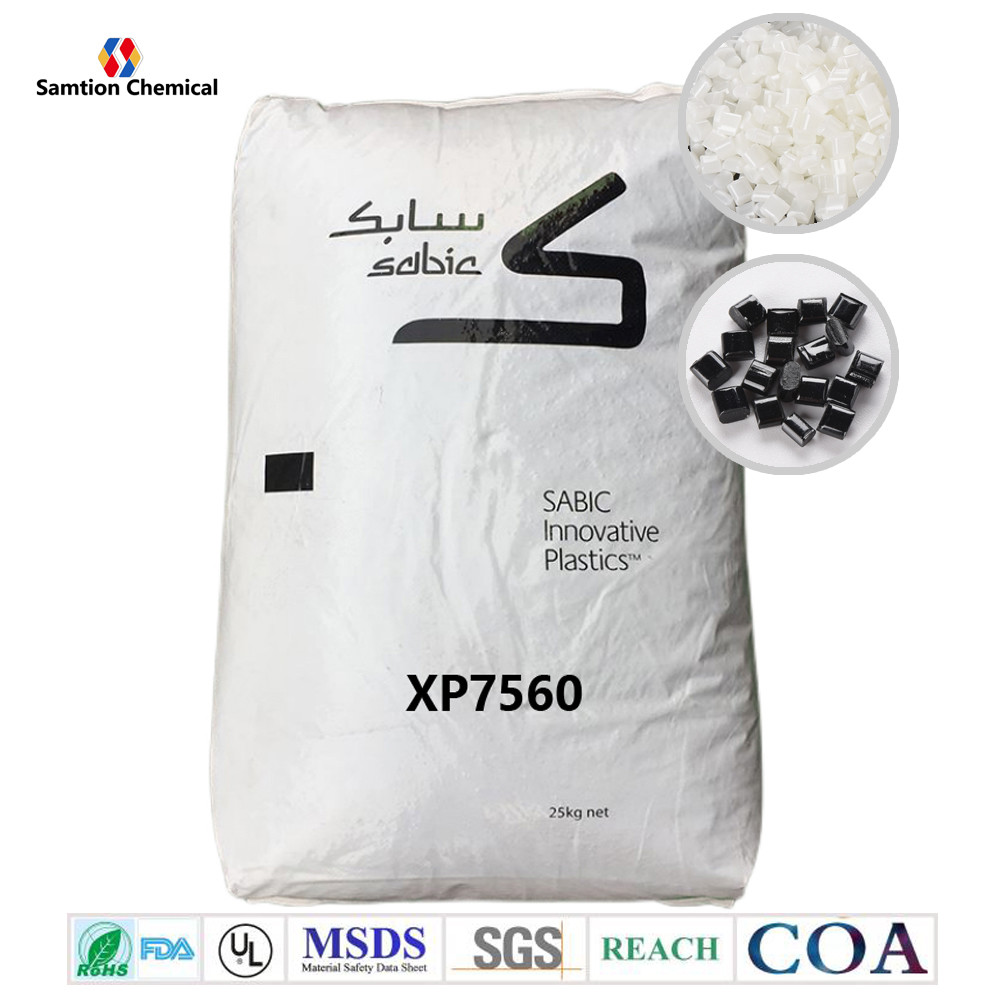

Sabic Geloy XP7560 resin is a general purpose ASA/PC injection moulding grade, available in various colours.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 55 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 43 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 3.7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 20 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2460 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 82 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2500 | MPa | ISO 178 |
| Hardness, H358/30 | 92 | MPa | ISO 2039-1 |
| Hardness, Rockwell R | 111 | - | ISO 2039-2 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 8 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Thermal Conductivity | 0.2 | W/m-°C | ISO 8302 |
| CTE, 23°C to 60°C, flow | 9.5E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 75°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Ball Pressure Test, approximate maximum | 95 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate A/50 | 113 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/50 | 102 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 107 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 102 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 86 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.4 - 0.6 | % | SABIC Method |
| Density | 1.1 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.8 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.3 | % | ISO 62 |
| Melt Volume Rate, MVR at 260°C/5.0 kg | 20 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating (3)(4) | 3.2 | mm | UL 94 by GE |
| Source GMD, last updated:07/15/2002 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 90 - 100 | °C |
| Drying Time | 2 - 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 250 - 270 | °C |
| Nozzle Temperature | 230 - 260 | °C |
| Front - Zone 3 Temperature | 240 - 270 | °C |
| Middle - Zone 2 Temperature | 230 - 260 | °C |
| Rear - Zone 1 Temperature | 220 - 250 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 50 - 70 | °C |
| Source GMD, last updated:07/15/2002 | ||
