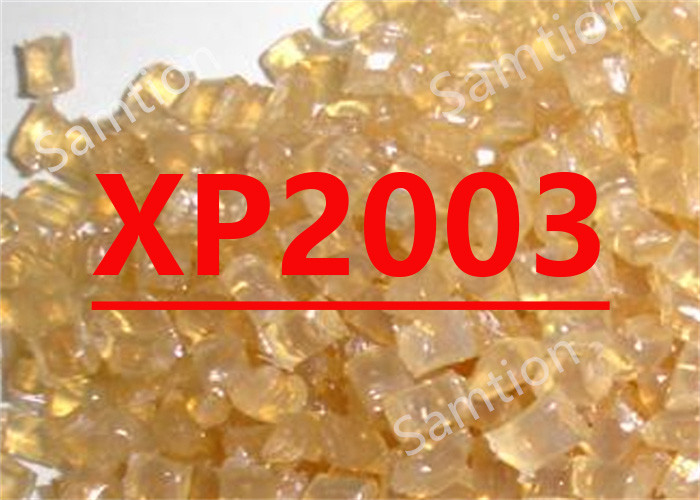

S-Plastics Geloy XP2003 resin is ASA+PVC alloy. Excellent weatherability.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 38 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 30 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 48 | MPa | ASTM D 790 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 51 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 1930 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 1580 | MPa | ASTM D 790 |
| Hardness, Rockwell R | 102 | - | ASTM D 785 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 961 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 106 | J/m | ASTM D 256 |
| Gardner, 23°C | 33 | J | ASTM D 3029 |
| Gardner, -30°C | 10 | J | ASTM D 3029 |
| Instrumented Impact Total Energy, 23°C | 56 | J | ASTM D 3763 |
| Instrumented Impact Total Energy, -30°C | 28 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 82 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 73 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 8.46E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 50 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 50 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.21 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.11 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.3 - 0.5 | % | S-Plastics Method |
| Melt Flow Rate, 200°C/3.8 kgf | 4.5 | g/10 min | ASTM D 1238 |
| OPTICAL | Value | Unit | Standard |
| Gloss, untextured, 60 degrees | 90 | - | ASTM D 523 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 7.2E+14 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 1.2E+15 | Ohm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 18.6 | kV/mm | ASTM D 149 |
| Dielectric Strength, in oil, 1.6 mm | 32 | kV/mm | ASTM D 149 |
| Relative Permittivity, 100 Hz | 3.54 | - | ASTM D 150 |
| Dissipation Factor, 100 Hz | 0.0031 | - | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 0 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 2 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 0 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 3 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 1.47 | mm | UL 94 |
| UL Recognized, 94V-1 Flame Class Rating (3) | 3.3 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 3.3 | mm | UL 94 |
| Source GMD, last updated:01/05/2000 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 65 - 70 | °C |
| Drying Time | 2 - 3 | hrs |
| Drying Time (Cumulative) | 3 | hrs |
| Maximum Moisture Content | 0.04 | % |
| Melt Temperature | 195 - 210 | °C |
| Nozzle Temperature | 190 - 205 | °C |
| Front - Zone 3 Temperature | 180 - 195 | °C |
| Middle - Zone 2 Temperature | 170 - 190 | °C |
| Rear - Zone 1 Temperature | 165 - 175 | °C |
| Mold Temperature | 25 - 60 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 80 | rpm |
| Shot to Cylinder Size | 40 - 80 | % |
| Vent Depth | 0.038 - 0.076 | mm |
| Source GMD, last updated:01/05/2000 | ||
