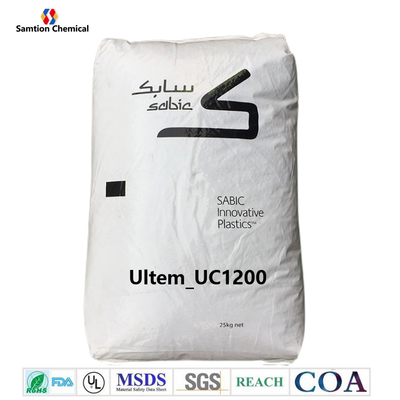

S-Plastics Stat-kon Ultem_UC1200 resin is a 12% carbon fiber reinforced PEI. High modulus with ESD characteristics for high-heat applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 131 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 131 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 5.1 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 5.1 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 8130 | MPa | ASTM D 638 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 221 | MPa | ASTM D 790 |
| Flexural Stress, brk, 2.6 mm/min, 100 mm span | 193 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 7830 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 8270 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 416 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 37 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 6 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 214 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 213 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 208 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 210 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.44E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 3.24E-05 | 1/°C | ASTM E 831 |
| CTE, -20°C to 150°C, flow | 1.44E-05 | 1/°C | ASTM E 831 |
| CTE, -20°C to 150°C, xflow | 3.96E-05 | 1/°C | ASTM E 831 |
| Relative Temp Index, Elec | 105 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 105 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.32 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.12 - 0.22 | % | S-Plastics Method |
| Mold Shrinkage, xflow, 3.2 mm | 0.3 - 0.5 | % | S-Plastics Method |
| Melt Flow Rate, 337°C/6.6 kgf | 7.5 | g/10 min | ASTM D 1238 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 4.E+02 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | 2.E+05 | Ohm | ASTM D 257 |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 2 | PLC Code | UL 746A |
| Static Decay, 5000V to <50V | 0.01 | < seconds | FTMS101B |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.57 | mm | UL 94 |
| Source GMD, last updated:06/27/2000 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 150 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 380 - 425 | °C |
| Nozzle Temperature | 375 - 420 | °C |
| Front - Zone 3 Temperature | 380 - 425 | °C |
| Middle - Zone 2 Temperature | 370 - 420 | °C |
| Rear - Zone 1 Temperature | 360 - 405 | °C |
| Mold Temperature | 135 - 165 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:06/27/2000 | ||
