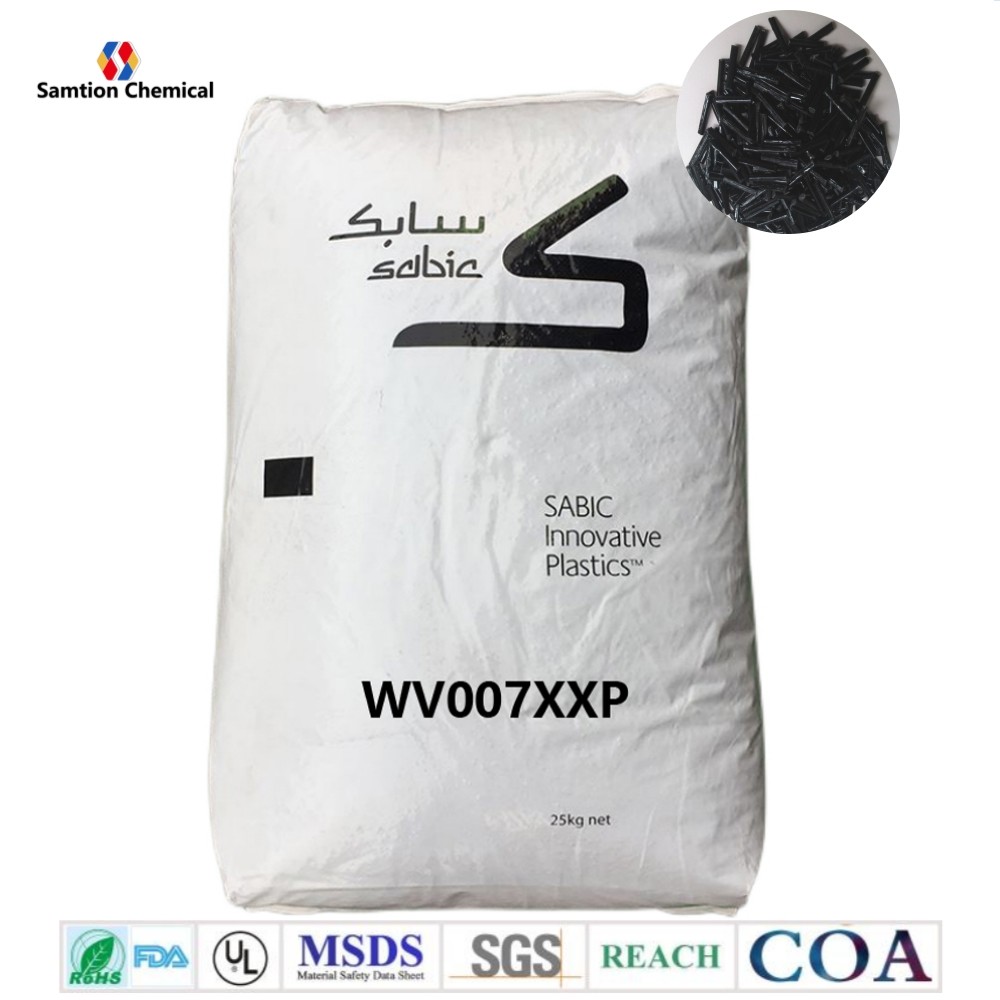

S-Plastics Verton WV007XXP resin is a compound based on Polybutylene Terephalate resin containing Long Glass.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 146 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.4 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 14000 | MPa | ASTM D 638 |
| Flexural Stress | 213 | MPa | ASTM D 790 |
| Flexural Modulus | 10390 | MPa | ASTM D 790 |
| Tensile Stress, break | 141 | MPa | ISO 527 |
| Tensile Strain, break | 1.3 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 13440 | MPa | ISO 527 |
| Flexural Stress | 209 | MPa | ISO 178 |
| Flexural Modulus | 11230 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 705 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 278 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 11 | J | ASTM D 3763 |
| Multiaxial Impact | 9 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 37 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 27 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 222 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 3.61E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 6.4E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 3.62E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 6.4E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 231 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.59 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.2 - 0.5 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.5 - 0.9 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.21 - 0.55 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.55 - 0.93 | % | ISO 294 |
| Density | 1.59 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.1 | % | ISO 62 |
| Source GMD, last updated:10/03/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.05 | % |
| Melt Temperature | 250 - 260 | °C |
| Front - Zone 3 Temperature | 250 - 260 | °C |
| Middle - Zone 2 Temperature | 240 - 250 | °C |
| Rear - Zone 1 Temperature | 230 - 245 | °C |
| Mold Temperature | 65 - 120 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 70 | rpm |
| Source GMD, last updated:10/03/2004 | ||
|
