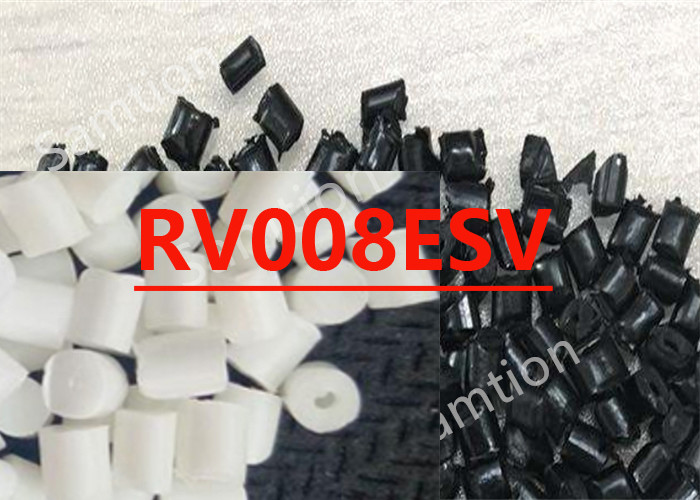

S-Plastics Verton RV008ESV resin is 40% long glass fiber filled PA66 Verton Xtreme XC
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 207 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 207 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 1.9 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.9 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 14060 | MPa | ASTM D 638 |
| Flexural Stress, break, 2 mm/min | 285 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 10570 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1140 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 207 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 7 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 73 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 18 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 254 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 2.6E-05 - 2.8E-05 | 1/°C | ASTM E 831 |
| CTE, -30°C to 30°C, xflow | 6.3E-05 - 6.5E-05 | 1/°C | ASTM E 831 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 259 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 255 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.498 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.72 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.2 - 0.4 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.8 - 1 | % | ASTM D 955 |
| Moisture Absorption (23°C / 50% RH) | 1.1 | % | ISO 62 |
| Source GMD, last updated:06/19/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 290 - 305 | °C |
| Front - Zone 3 Temperature | 290 - 300 | °C |
| Middle - Zone 2 Temperature | 290 - 300 | °C |
| Rear - Zone 1 Temperature | 280 - 295 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:06/19/2008 | ||
