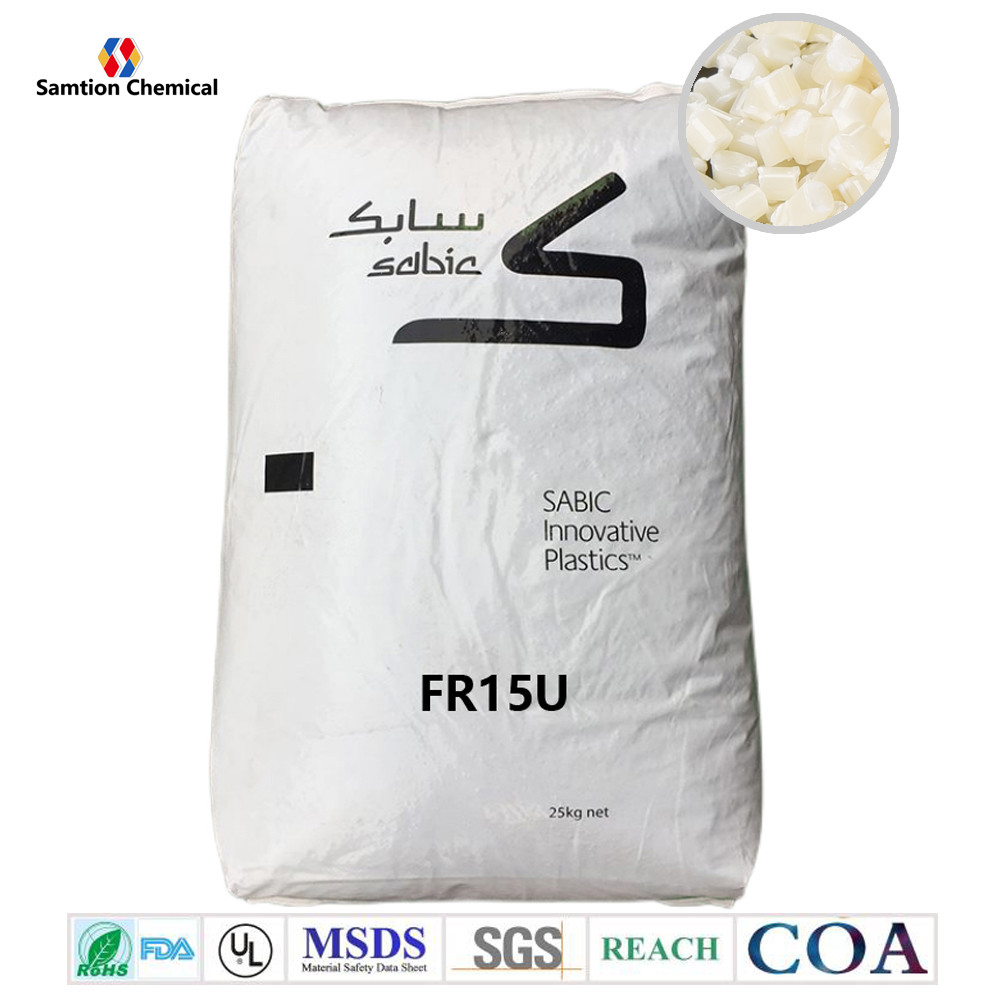

Sabic Cycolac FR15U resin is Flame retardant ABS with excellent indoor UV properties and excellent processing. UL94 V-0/5VA rated. Elevated UL RTI rating (90-85-90) for all colors except for blue and green colors (60-60-60).
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 37 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 30 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 17 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2060 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 67 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2340 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 41 | MPa | ISO 527 |
| Tensile Strain, break, 50 mm/min | 21.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2210 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 63 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2260 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 213 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 28 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 12 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 93 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 86 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 75 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 9.E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 9.18E-05 | 1/°C | ASTM E 831 |
| Vicat Softening Temp, Rate B/50 | 92 | °C | ISO 306 |
| Relative Temp Index, Elec | 90 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 85 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 90 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | SABIC Method |
| Melt Flow Rate, 230°C/3.8 kgf | 3.3 | g/10 min | ASTM D 1238 |
| Melt Viscosity, 200°C, 1000 sec-1 | 3200 | poise | ASTM D 3825 |
| Density | 1.19 | g/cm³ | ISO 1183 |
| Melt Flow Rate, 220°C/5.0 kg | 7 | g/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 220°C/10.0 kg | 40 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Arc Resistance, Tungsten {PLC} | 7 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 2 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 4 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 1 | PLC Code | UL 746A |
| Volume Resistivity | >1.E+14 | Ohm-cm | IEC 60093 |
| Dielectric Strength, in oil, 3.2 mm | 20 | kV/mm | IEC 60243-1 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.49 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.79 | mm | UL 94 |
| Source GMD, last updated:12/08/2005 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 90 | °C |
| Drying Time | 2 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.01 | % |
| Melt Temperature | 205 - 230 | °C |
| Nozzle Temperature | 205 - 230 | °C |
| Front - Zone 3 Temperature | 205 - 220 | °C |
| Middle - Zone 2 Temperature | 200 - 210 | °C |
| Rear - Zone 1 Temperature | 170 - 180 | °C |
| Mold Temperature | 50 - 70 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Shot to Cylinder Size | 50 - 70 | % |
| Vent Depth | 0.038 - 0.051 | mm |
| Source GMD, last updated:12/08/2005 | ||
