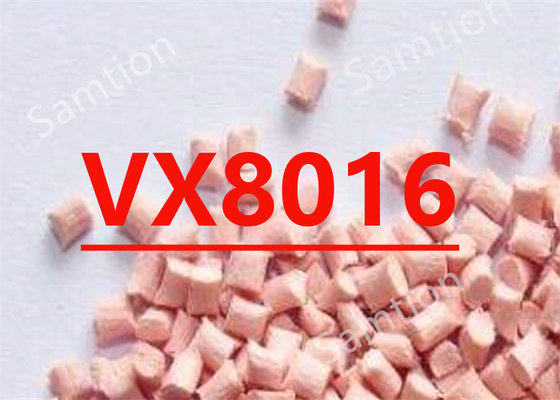

S-Plastics Valox VX8016 resin is a 15% glass/mineral filled injection moulding PBT+PET blend with excellent surface finish. This grade is 815 with improved heat performance.
| MECHANICAL | Value | Unit | Standard |
| Taber Abrasion, CS-17, 1 kg | 35 | mg/1000cy | S-Plastics Method |
| Tensile Stress, break, 5 mm/min | 70 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4900 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 112 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 4250 | MPa | ISO 178 |
| Hardness, H358/30 | 140 | MPa | ISO 2039-1 |
| Hardness, Rockwell R | 120 | - | ISO 2039-2 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 25 | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*4 -30°C | 22 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 4 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 4 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 3 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm | 3 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 5.E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 9.5E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, approximate maximum | 205 | °C | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/120 | 195 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 198 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 120 | °C | ISO 75/Ae |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.6 - 1 | % | S-Plastics Method |
| Density | 1.51 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 265°C/1.2 kg | 8 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index | 275 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| Glow Wire Flammability Index 750°C, passes at | 1 | mm | IEC 60695-2-12 |
| Source GMD, last updated:03/09/1999 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 110 - 120 | °C |
| Drying Time | 4 - 6 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 285 | °C |
| Nozzle Temperature | 265 - 275 | °C |
| Front - Zone 3 Temperature | 260 - 280 | °C |
| Middle - Zone 2 Temperature | 255 - 280 | °C |
| Rear - Zone 1 Temperature | 240 - 260 | °C |
| Hopper Temperature | 40 - 60 | °C |
| Mold Temperature | 60 - 110 | °C |
| Source GMD, last updated:03/09/1999 | ||
