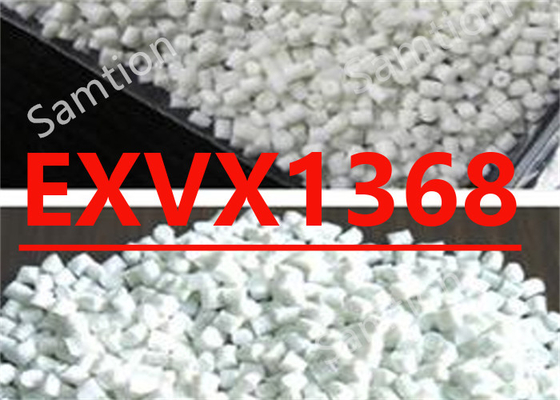

S-Plastics Valox EXVX1368 resin is a 30% Glassfiber reinforced Flame Retardant PCT resin
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 118 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 118 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.5 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.5 | % | ISO 527 |
| Flexural Stress, break, 2 mm/min | 165 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 8800 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 38 | kJ/m² | ISO 180/1U |
| THERMAL | Value | Unit | Standard |
| Ball Pressure Test, 125°C +/- 2°C | Pass | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/120 | 237 | °C | ISO 306 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 272 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 226 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.64 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 300°C/2.16 kg | 21 | cm³/10 min | ISO 1133 |
| Melt Viscosity, 300°C, 1500 sec-1 | 121 | Pa-s | ISO 11443 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.8 | mm | UL 94 by GE |
| Source GMD, last updated:2009/12/07 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 145 - 155 | °C |
| Drying Time | 4 - 6 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 280 - 300 | °C |
| Nozzle Temperature | 270 - 290 | °C |
| Front - Zone 3 Temperature | 280 - 300 | °C |
| Middle - Zone 2 Temperature | 270 - 290 | °C |
| Rear - Zone 1 Temperature | 260 - 280 | °C |
| Hopper Temperature | 40 - 60 | °C |
| Mold Temperature | 90 - 120 | °C |
| Source GMD, last updated:2009/12/07 | ||
|
For more information please download the datasheet |
|
 |
S-Plastics Valox EXVX1368.pdf |
|
