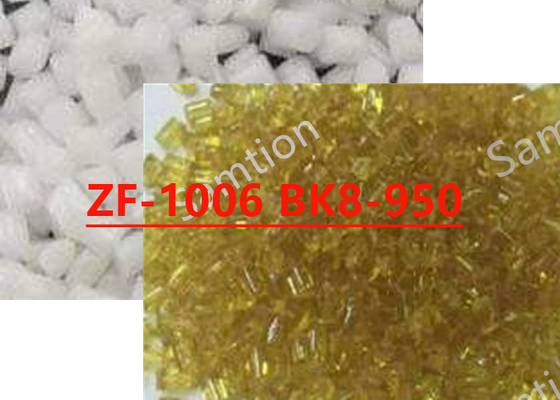

S-Plastics Thermocomp ZF-1006 BK8-950 resin is a compound based on PPE+PS Blend resin containing Glass Fiber.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 108 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.6 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 9870 | MPa | ASTM D 638 |
| Flexural Stress | 165 | MPa | ASTM D 790 |
| Flexural Modulus | 8900 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 528 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 117 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 135 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.31 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.3 | % | ASTM D 955 |
| Source GMD, last updated:01/02/2007 | |||
