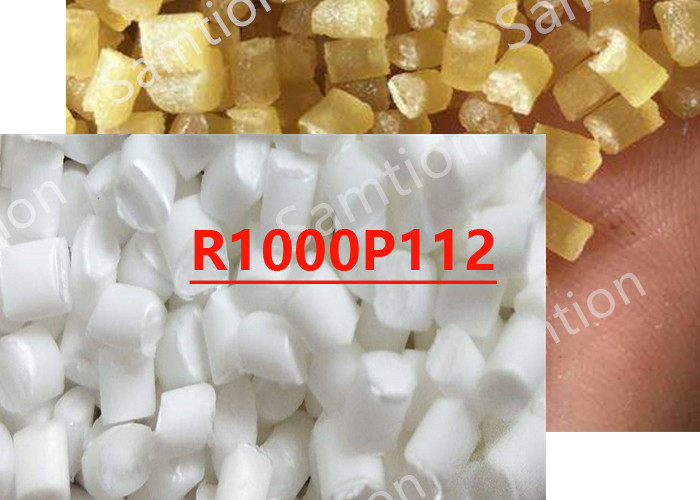

S-Plastics Thermocomp R1000P112 resin is High Impact Nylon 66 compound.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 38 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | >300 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 650 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 22 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 600 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 -30°C | 99 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 50 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -30°C | 5 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 40 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 2.8 - 3.2 | % | S-Plastics Method |
| Density | 1.09 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index | 3 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94HB Flame Class Rating (3)(4) | 1.6 | mm | UL 94 by GE |
| Source GMD, last updated:05/17/2006 | |||
