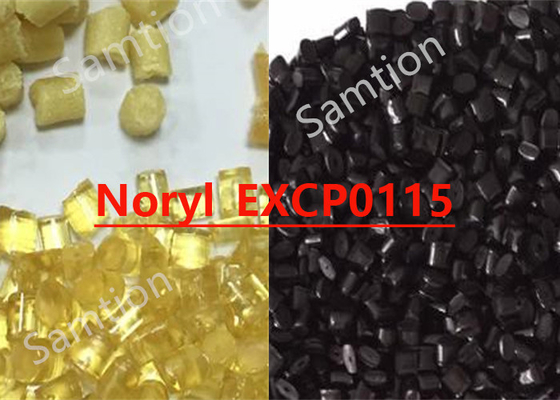

S-Plastics Thermocomp Noryl_EXCP0115 resin is a glass reinforced, carbon/mineral filled flame retardant PPO/PS injection moulding
resin.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 110 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.5 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9700 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 140 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 8100 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity, ROA | 4.E+05 | Ohm | IEC 60093 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-1 Flame Class Rating (3)(4) | 3.2 | mm | UL 94 by GE |
| Source GMD, last updated:10/18/2001 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 105 | °C |
| Drying Time | 3 - 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 270 - 300 | °C |
| Mold Temperature | 65 - 95 | °C |
| Source GMD, last updated:10/18/2001 | ||
