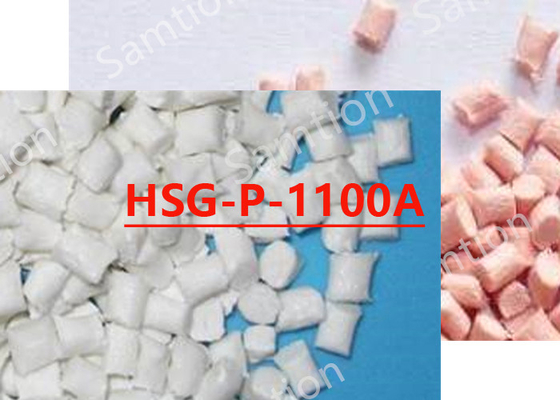

S-Plastics Thermocomp HSG-P-1100A resin is a compound based on Nylon 6 resin containing High Specific Gravity Filler. Added features of thismaterial include: High Specific Gravity.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 39 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.1 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 15490 | MPa | ASTM D 638 |
| Flexural Stress | 82 | MPa | ASTM D 790 |
| Flexural Modulus | 16400 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 267 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 69 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 152 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 11 | g/cm³ | ASTM D 792 |
| Source GMD, last updated:12/20/2006 | |||
