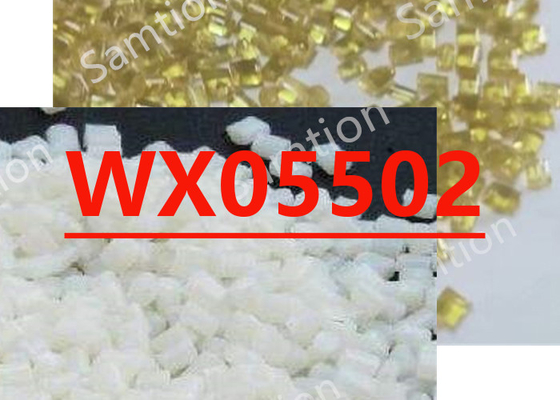

S-Plastics Thermocomp WX05502 resin is a compound based on Polyester, TP resin containing Flame Retardant, Glass Fiber, Mineral. Addedfeatures of this material include: Flame Retardant.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 97 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.5 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 13920 | MPa | ASTM D 638 |
| Flexural Stress | 131 | MPa | ASTM D 790 |
| Flexural Modulus | 19160 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 320 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 48 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 209 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.83 | g/cm³ | ASTM D 792 |
| Source GMD, last updated:08/02/2005 | |||
