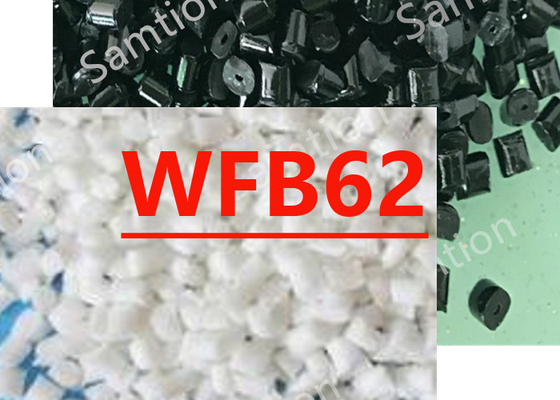

S-Plastics Thermocomp WFB62 resin is a compound based on Polybutylene Terephalate resin containing Glass Fiber, Glass Bead. Added featuresof this material include: Low Warpage.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 61 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.9 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 7370 | MPa | ASTM D 638 |
| Flexural Stress | 103 | MPa | ASTM D 790 |
| Flexural Modulus | 6520 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 359 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 37 | J/m | ASTM D 256 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 176 | °C | ASTM D 648 |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.72 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.75 | % | ASTM D 955 |
| Source GMD, last updated:01/02/2007 | |||
