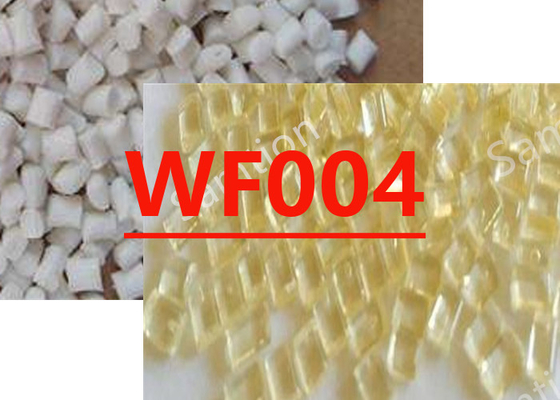

S-Plastics Thermocomp WF004 resin is a compound based on Polybutylene Terephalate resin containing Glass Fiber.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 109 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.3 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 6600 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 169 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 6000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 45 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 3.4E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 1.13E-04 | 1/°C | ISO 11359-2 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 219 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 192 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.3 - 0.6 | % | S-Plastics Method |
| Density | 1.45 | g/cm³ | ISO 1183 |
| Source GMD, last updated:02/26/2007 | |||
