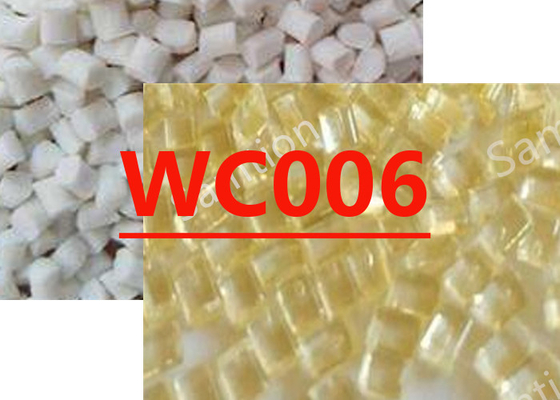

S-Plastics Thermocomp WC006 resin is a compound based on Polybutylene Terephalate resin containing Carbon Fiber.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 151 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1 - 2 | % | ISO 527 |
| Flexural Stress, break, 2 mm/min | 214 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 16100 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*4 +23°C | 30 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 7 | kJ/m² | ISO 180/1A |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.1 - 0.2 | % | S-Plastics Method |
| Density | 1.42 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+01 - 1.E+03 | Ohm | ASTM D 257 |
| Source GMD, last updated:10/10/2006 | |||
Other related products we recommend:
|
For more information please download the datasheet |
|
 |
S-Plastics Thermocomp WC006.pdf |
|
