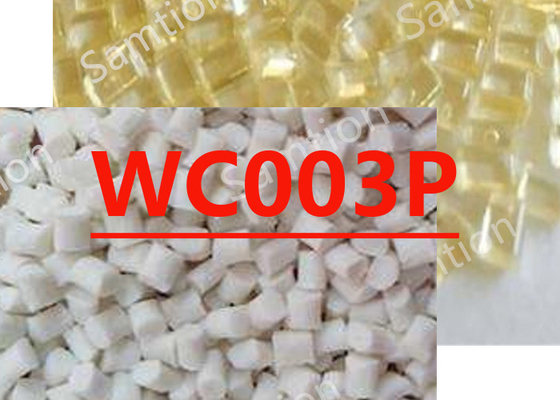

S-Plastics Thermocomp WC003P resin is a compound based on Polyester resin containing Carbon Fiber. Added features of this material include:Electrically Conductive.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 104 | MPa | ASTM D 638 |
| Tensile Strain, break | 2 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10470 | MPa | ASTM D 638 |
| Flexural Stress | 151 | MPa | ASTM D 790 |
| Flexural Modulus | 8680 | MPa | ASTM D 790 |
| Tensile Stress, break | 104 | MPa | ISO 527 |
| Tensile Strain, break | 1.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10000 | MPa | ISO 527 |
| Flexural Stress | 157 | MPa | ISO 178 |
| Flexural Modulus | 9030 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 480 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 32 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 7 | J | ASTM D 3763 |
| Multiaxial Impact | 1 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 29 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 3 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 193 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.52E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 7.56E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 2.47E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 7.47E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 183 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.38 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.05 | % | ASTM D 570 |
| Mold Shrinkage, flow | 0.5 - 0.7 | % | S-Plastics Method |
| Mold Shrinkage, xflow | 1.1 - 1.3 | % | S-Plastics Method |
| Mold Shrinkage, flow, 24 hrs | 0.5 - 0.7 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 1.1 - 1.3 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.5 - 0.7 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 1.1 - 1.3 | % | ISO 294 |
| Density | 1.37 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.08 | % | ISO 62 |
| Source GMD, last updated:11/30/2005 | |||
