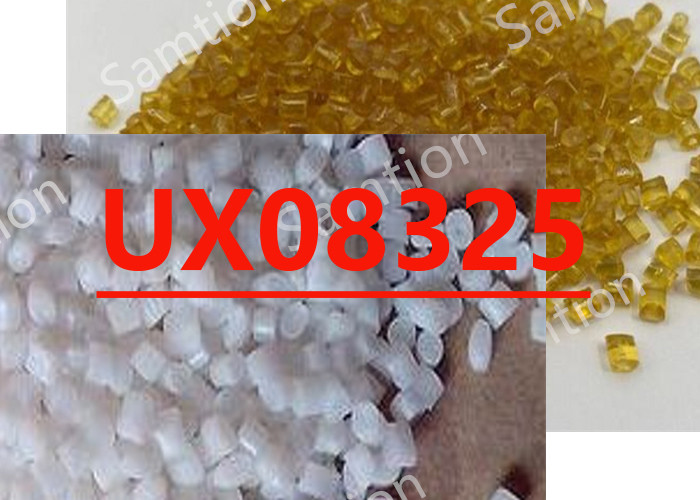

S-Plastics Thermocomp UX08325 resin is ……………………
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 135 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 1.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10880 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 197 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 194 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 9770 | MPa | ASTM D 790 |
| Tensile Stress, break, 5 mm/min | 125 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.6 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 11080 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 194 | MPa | ISO 178 |
| Flexural Strain, break, 2 mm/min | 2 | % | ISO 178 |
| Flexural Modulus, 2 mm/min | 9610 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 351 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 31 | J/m | ASTM D 256 |
| Izod Impact, notched 80*10*4 +23°C | 2 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 263 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.21E+01 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 5.43E+01 | 1/°C | ASTM E 831 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 261 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.55 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow (5) | 0.41 | % | S-Plastics Method |
| Mold Shrinkage, xflow (5) | 0.52 | % | S-Plastics Method |
| Moisture Absorption (23°C / 50% RH) | 0.53 | % | ISO 62 |
| Source GMD, last updated:2009/08/12 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 | % |
| Melt Temperature | 315 - 330 | °C |
| Front - Zone 3 Temperature | 325 - 340 | °C |
| Middle - Zone 2 Temperature | 315 - 325 | °C |
| Rear - Zone 1 Temperature | 310 - 320 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2009/08/12 | ||
