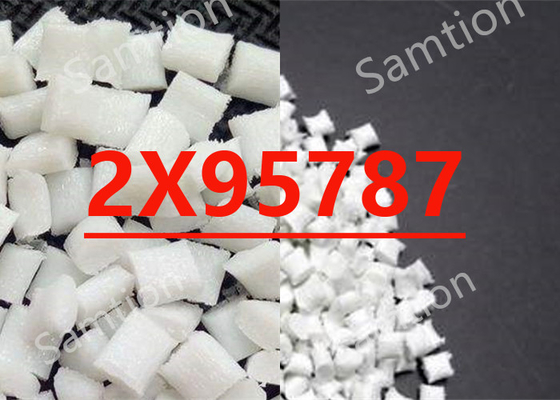

S-Plastics Thermocomp 2X95787 resin is a compound based on Ethylene Tetrafluoroethylene Copolymer resin containing Carbon Fiber.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 48 | MPa | ASTM D 638 |
| Tensile Stress, break | 45 | MPa | ASTM D 638 |
| Tensile Strain, yield | 9.3 | % | ASTM D 638 |
| Tensile Strain, break | 13.7 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 42740 | MPa | ASTM D 638 |
| Flexural Modulus | 33780 | MPa | ASTM D 790 |
| Tensile Stress, yield | 47 | MPa | ISO 527 |
| Tensile Stress, break | 45 | MPa | ISO 527 |
| Tensile Strain, yield | 8.6 | % | ISO 527 |
| Tensile Strain, break | 12.8 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4050 | MPa | ISO 527 |
| Flexural Stress | 66 | MPa | ISO 178 |
| Flexural Modulus | 4000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 1335 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 480 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 19 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 83 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 24 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 222 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 107 | °C | ASTM D 648 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 203 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 91 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.84 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 1.8 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 2.4 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 1.8 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 2.4 | % | ISO 294 |
| Density | 1.83 | g/cm³ | ISO 1183 |
| Source GMD, last updated:09/24/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 370 - 390 | °C |
| Front - Zone 3 Temperature | 390 - 400 | °C |
| Middle - Zone 2 Temperature | 355 - 365 | °C |
| Rear - Zone 1 Temperature | 315 - 325 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:09/24/2008 | ||
