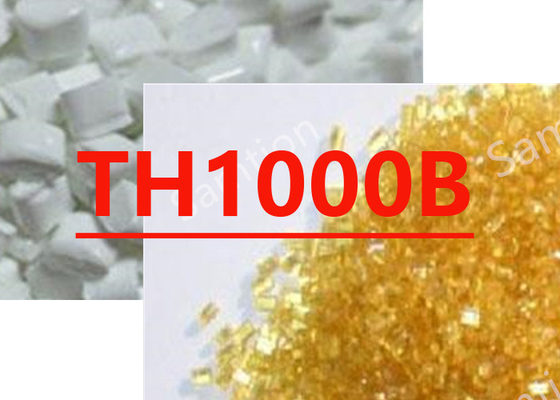

S-Plastics Thermocomp TH1000B resin is a compound based on Polyurethane resin containing Stainless Steel. Added features of this materialinclude: Electrically Conductive.
| PHYSICAL | Value | Unit | Standard |
| Density | 1.15 | g/cm³ | ASTM D 792 |
| ELECTRICAL | Value | Unit | Standard |
| Surface Resistivity | 1.E+05 - 1.E+06 | Ohm | ASTM D 257 |
| Source GMD, last updated:10/01/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 | % |
| Melt Temperature | 190 - 220 | °C |
| Front - Zone 3 Temperature | 210 - 220 | °C |
| Middle - Zone 2 Temperature | 200 - 210 | °C |
| Rear - Zone 1 Temperature | 190 - 200 | °C |
| Mold Temperature | 40 - 55 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/01/2004 | ||
Other related products we recommend:
|
For more information please download the datasheet |
|
 |
S-Plastics Thermocomp TH1000B.pdf |
|
