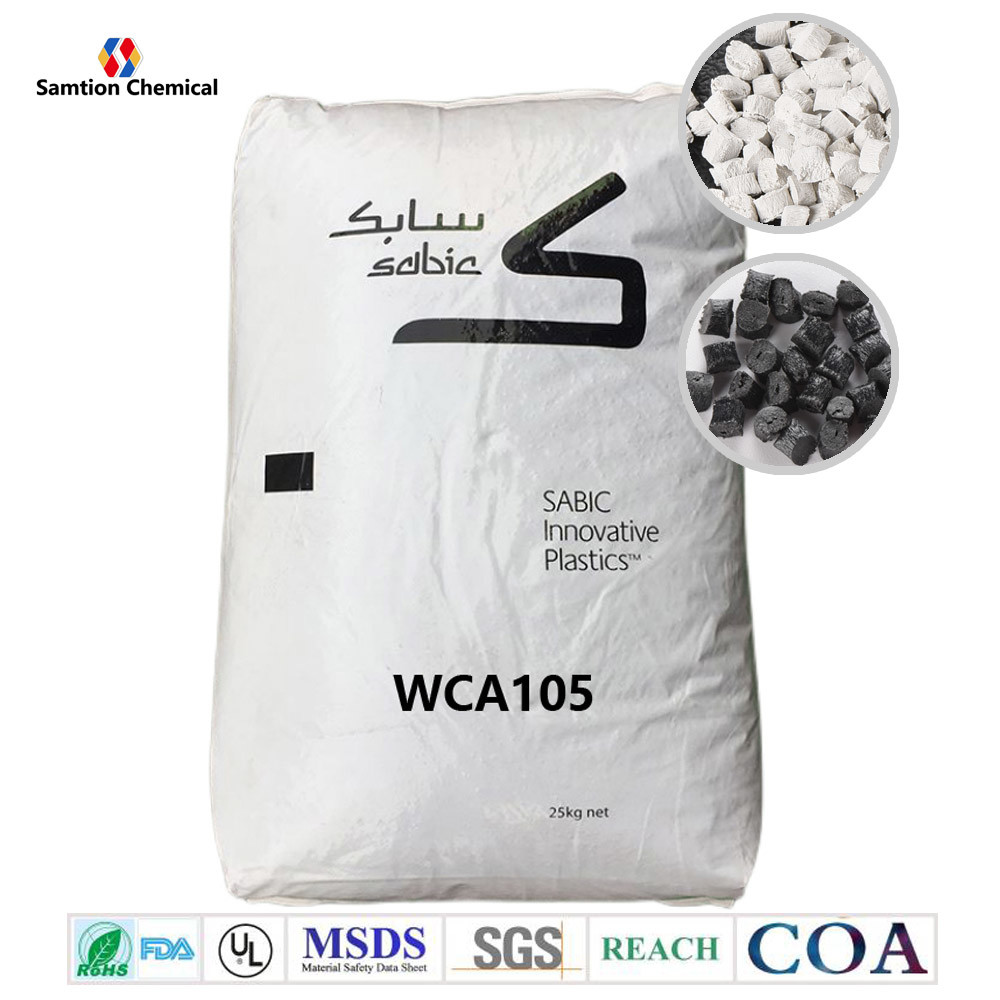

S-Plastics NoryL WCA105 Flexible, non-halogenated FR mPPE extrusion grade ideal for evaluation in applications such as wire insulation. Flame retardant performance capable of meeting VW1 and 105C temperature rating requirements as defined by UL 1581. 56 Shore D hardness. Excellent processing using standard extrusion equipment. UL 1581 tests conducted on 2.0 mm wire with 0.12 mm x 20 stranded copper conductor.
Property
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, brk, Type I, 50 mm/min | 23 | MPa | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 85 | % ASTM D 638 | |
Flexural Modulus, 12.5 mm/min, 100 mm span | 650 | MPa | ASTM D 790 |
Tensile Stress, break, 50 mm/min | 23 | MPa | ISO 527 |
Tensile Strain, break, 50 mm/min | 90 | % ISO 527 | |
Flexural Modulus, 12.5 mm/min | 720 | MPa | ISO 178 |
Hardness, Shore D | 56 | - | ISO 868 |
Tear strength | 25 | N/mm | ISO 6383 |
IMPACT | Value | Unit | Standard |
Brittleness Temperature | <-40 | °C | ASTM D 746 |
THERMAL | Value | Unit | Standard |
HDT, 0.45 MPa, 6.4 mm, unannealed | 85 | °C | ASTM D 648 |
Vicat Softening Temp, Rate A/50 | 102 | °C | ISO 306 |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.03 | - | ASTM D 792 |
Water Absorption, 23°C/48hrs | 0.1 | % ASTM D 570 | |
Melt Flow Rate, 250°C/10.0 kgf | 5.1 | g/10 min |
ASTM D 1238 |
ELECTRICAL | Value | Unit | Standard |
Volume Resistivity | 3.9E+16 | Ohm- cm |
IEC 60093 |
Dielectric strength in oil, 2.0mm | 26 | kV/mm | IEC 60243-1 |
Relative Permittivity, 50/60 Hz | 2.6 | - | IEC 60250 |
Relative Permittivity, 1 MHz | 2.5 | - | IEC 60250 |
Dissipation Factor, 50/60 Hz | 0.024 | - | IEC 60250 |
Dissipation Factor, 1 MHz | 0.0038 | - | IEC 60250 |
Comparative Tracking Index | 600 | V | IEC 60112 |
FLAME CHARACTERISTICS | Value | Unit | Standard |
Smoke Density on 0.5mm plaque, Non-flame, Ds, max | 75 | - | ASTM E 662 |
Smoke Density on 0.5mm plaque, Flame, Ds, max | 150 | - | ASTM E 662 |
Glow Wire Flammability Index 960°C, passes at | 3 | mm | IEC 60695-2- 12 |
Glow Wire Ignitability Temperature, 3.0 mm | 750 | °C | IEC 60695-2- 13 |
Oxygen Index (LOI) | 25 | % ISO 4589 | |
WIRE AND CABLE - UL 1581 tested on 2.0mm wire with 0.12mmx20 stranded copper |
Value | Unit | Standard |
Tensile strength @ break | 33 | MPa | UL 1581 |
Tensile elongation @ break | 197 | % UL 1581 | |
Tensile strength @ break after 7days @136°C | 36 | MPa | UL 1581 |
Tensile elongation @ break after 7days @136°C | 156 | % UL 1581 | |
UL temperature rating | 105 | °C | UL 1581 |
Heat Deformation at 121°C/250g | 26 | % UL 1581 | |
VW-1 | Pass | - | UL 1581 |
Source GMD, last updated:07/11/2005 |
Processing
Parameter | |||
Wire Coating Extrusion | Value | Unit | |
Drying Temperature | 60 - 80 | °C | |
Drying Time | 4 - 6 | hrs | |
Drying Time (Cumulative) | 12 | hrs | |
Maximum Moisture Content | 0.02 | % | |
Extruder Length/Diameter Ratio (L/D) | 22:1 to 26:1 | - | |
Screw Speed | 15 - 40 | rpm | |
Feed Zone Temperature | 210 - 260 | °C | |
Middle Zone Temperatures | 230 - 285 | °C | |
Head Zone Temperature | 250 - 285 | °C | |
Neck Temperature | 250 - 285 | °C | |
Cross-head Temperature | 250 - 285 | °C | |
Die Temperature | 250 - 285 | °C | |
Melt Temperature | 250 - 285 | °C | |
Conductor Pre-heat Temperature | 80 - 150 | °C | |
Screen Pack | 150 - 100 | - | |
Cooling Water Air Gap | 100 - 200 | mm | |
Water Bath Temperature | 15 - 80 | °C | |
Source GMD, last updated:07/11/2005 |
Drinking water / food grade:731,731S,GFN10F,GFN20F,GFN30F,GFN1520V,GFN1630V(Color requirements)
Unreinforce and flame retardant: 0150B,N190X,PX9406P,SE100X
Reinforce and flame retardant: SE1GFN1,SE1GFN2,SE1GFN3,HS2000X
For more information please see below |
|
S-Plastics Noryl WCA105.pdf |
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials Click to consult and get the latest quotation within 24 hours! |
S-Plastics Noryl Resin Application
S-Plastics Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the S-Plastics company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.S-Plastics Noryl PPO include: |
|
|
3. Chemical resistance: S-Plastics Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: S-Plastics Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: S-Plastics Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
