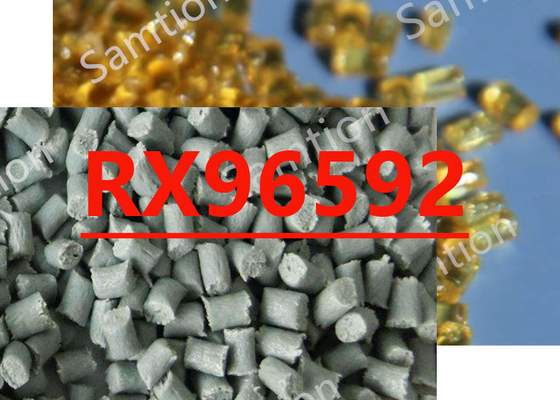

S-Plastics Thermocomp RX96592 resin is a compound based on Nylon 6/6 containing Proprietary Fillers.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, brk, Type I, 5 mm/min | 154 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 2.2 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10300 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 222 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 221 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 9140 | MPa | ASTM D 790 |
| Tensile Stress, break, 5 mm/min | 152 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2.2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 10210 | MPa | ISO 527 |
| Flexural Stress | 218 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 8810 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 626 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 67 | J/m | ASTM D 256 |
| Multiaxial Impact | 1 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 7 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 37 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 255 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 239 | °C | ASTM D 648 |
| CTE, -30°C to 30°C, flow | 3.81E+01 | 1/°C | ASTM D 696 |
| CTE, -30°C to 30°C, xflow | 8.96E+01 | 1/°C | ASTM D 696 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 253 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 233 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.39 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.85 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.3 - 0.6 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs (5) | 1 - 4 | % | ASTM D 955 |
| Moisture Absorption (23°C / 50% RH) | 1.4 | % | ISO 62 |
| Source GMD, last updated:2009/09/02 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.25 | % |
| Melt Temperature | 280 - 305 | °C |
| Front - Zone 3 Temperature | 295 - 305 | °C |
| Middle - Zone 2 Temperature | 280 - 295 | °C |
| Rear - Zone 1 Temperature | 265 - 275 | °C |
| Mold Temperature | 95 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2009/09/02 | ||
