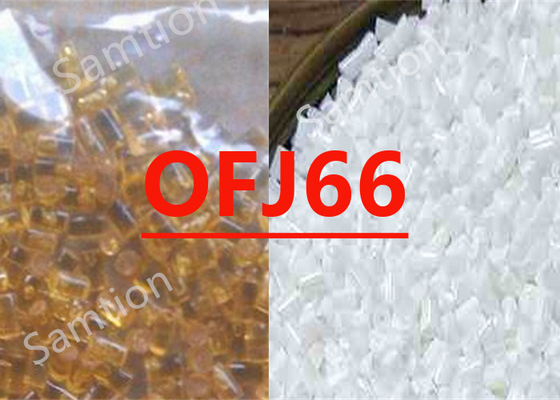

S-Plastics Thermocomp OFJ66 resin is a compound based on PPS - Linear resin containing Glass Fiber, Mineral. Added features of this material
include: Low Warpage.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 134 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.2 | % | ASTM D 638 |
| Flexural Stress | 199 | MPa | ASTM D 790 |
| Flexural Modulus | 19210 | MPa | ASTM D 790 |
| Tensile Stress, break | 130 | MPa | ISO 527 |
| Tensile Strain, break | 1.2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 19000 | MPa | ISO 527 |
| Flexural Stress | 210 | MPa | ISO 178 |
| Flexural Modulus | 18800 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 45 | J/m | ASTM D 256 |
| Izod Impact, unnotched 80*10*4 +23°C | 20 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 6 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 265 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.9E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 3.07E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.9E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 2.4E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 270 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.96 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.03 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.1 - 0.2 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.3 - 0.5 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 1 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 3 | % | ISO 294 |
| Density | 1.95 | g/cm³ | ISO 1183 |
| Source GMD, last updated:10/02/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Melt Temperature | 315 - 320 | °C |
| Front - Zone 3 Temperature | 330 - 345 | °C |
| Middle - Zone 2 Temperature | 320 - 330 | °C |
| Rear - Zone 1 Temperature | 305 - 315 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:10/02/2004 | ||
