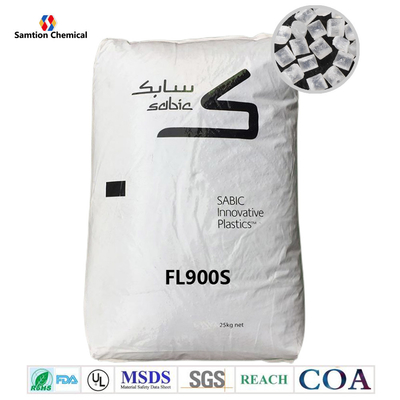

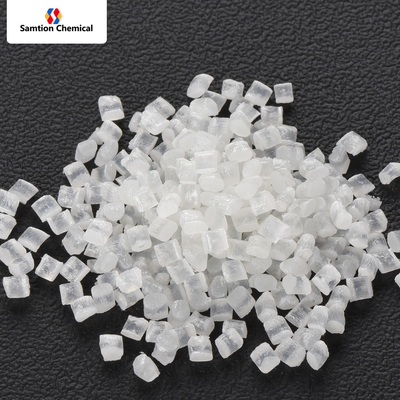

S-Plastics Lexan FL900S resin isan ideal choice for structural components where load bearing capability at elevated
temperature is a key requirement. It exhibits outstanding inpact strength, high heat resistance, flexural characteristics, creep resistanceand processa- bility. In addition, it is an excellent alternative to metal for large components with broad application potential in theappliance, automotive, telecommunications, material, handling and business machine industries. The material contains 5% glass fiber andcombines regidity, impact strength and toughness with UL 94 V-0 and 5V listings.
MECHANICAL | Value | Unit | Standard |
Tensile Stress, break, 5 mm/min | 42 | MPa | ISO 527 |
Tensile Strain, break, 5 mm/min | 5 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2000 | MPa | ISO 527 |
Flexural Stress, break, 2 mm/min | 80 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 2400 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Gardner Impact (GE) | 50 | J | S-Plastics Method |
THERMAL | Value | Unit | Standard |
Specific Heat | 0.28 | J/g-°C | ASTM C 351 |
Thermal Conductivity | 0.15 | W/m-°C | ISO 8302 |
CTE, 23°C to 80°C, flow | 3.5E-05 | 1/°C | ISO 11359-2 |
Ball Pressure Test, 75°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
Ball Pressure Test, 125°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 128 | °C | ISO 75/Af |
Relative Temp Index, Elec | 80 | °C | UL 746B |
Relative Temp Index, Mech w/impact | 80 | °C | UL 746B |
Relative Temp Index, Mech w/o impact | 80 | °C | UL 746B |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 0.95 | - | ASTM D 792 |
Filler Content | 5 | % | ASTM D 229 |
Water Absorption, 24 hours | 0.15 | % | ASTM D 570 |
Mold Shrinkage on Tensile Bar, flow (2) | 0.5 - 0.7 | % | S-Plastics Method |
Water Absorption, (23°C/sat) | 0.35 | % | ISO 62 |
ELECTRICAL | Value | Unit | Standard |
Dielectric Strength, in oil, 0.8 mm | 35 | kV/mm | ASTM D 149 |
Dielectric Strength, in oil, 1.6 mm | 27 | kV/mm | ASTM D 149 |
Dielectric Strength, in oil, 3.2 mm | 17 | kV/mm | ASTM D 149 |
Relative Permittivity, 100 Hz | 2.4 | - | IEC 60250 |
Relative Permittivity, 1 MHz | 2.3 | - | IEC 60250 |
Dissipation Factor, 100 Hz | 0.0029 | - | IEC 60250 |
Dissipation Factor, 1 MHz | 0.01 | - | IEC 60250 |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Compliant, 94V-0 Flame Class Rating (3)(4) | 3 | mm | UL 94 by GE |
UL Recognized, 94V-0 Flame Class Rating (3) | 6 | mm | UL 94 |
UL Recognized, 94-5VA Rating (3) | 6 | mm | UL 94 |
Oxygen Index (LOI) | 35 | % | ISO 4589 |
Source GMD, last updated:02/25/2003 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 120 | °C |
Drying Time | 2 - 4 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 290 - 320 | °C |
Nozzle Temperature | 290 - 320 | °C |
Front - Zone 3 Temperature | 290 - 320 | °C |
Middle - Zone 2 Temperature | 280 - 310 | °C |
Rear - Zone 1 Temperature | 265 - 295 | °C |
Hopper Temperature | 60 - 80 | °C |
Mold Temperature | 65 - 95 | °C |
Source GMD, last updated:02/25/2003 |
