UV Stabilized S-Plastic Lexan 143 Polycarbonate Plastic Resin HB 10.5 MFR

100KG
MOQ
*USD
Price
UV Stabilized S-Plastic Lexan 143 Polycarbonate Plastic Resin HB 10.5 MFR
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Flow Rate, 300°C/1.2 Kgf: 10.5
UL Recognized, 94HB Flame Class Rating (3): 0.76
Nonhalogenated: Yes
UV-Stabilized: Yes
Highlight:

10.5MFR Polycarbonate Plastic Resin 143

,

HB S-Plastic Polycarbonate Plastic Resin

,

UV Stabilized S-Plastic lexan resin 143

Basic Infomation
Place of Origin: ——
Brand Name: S-Plastic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: 143
Payment & Shipping Terms

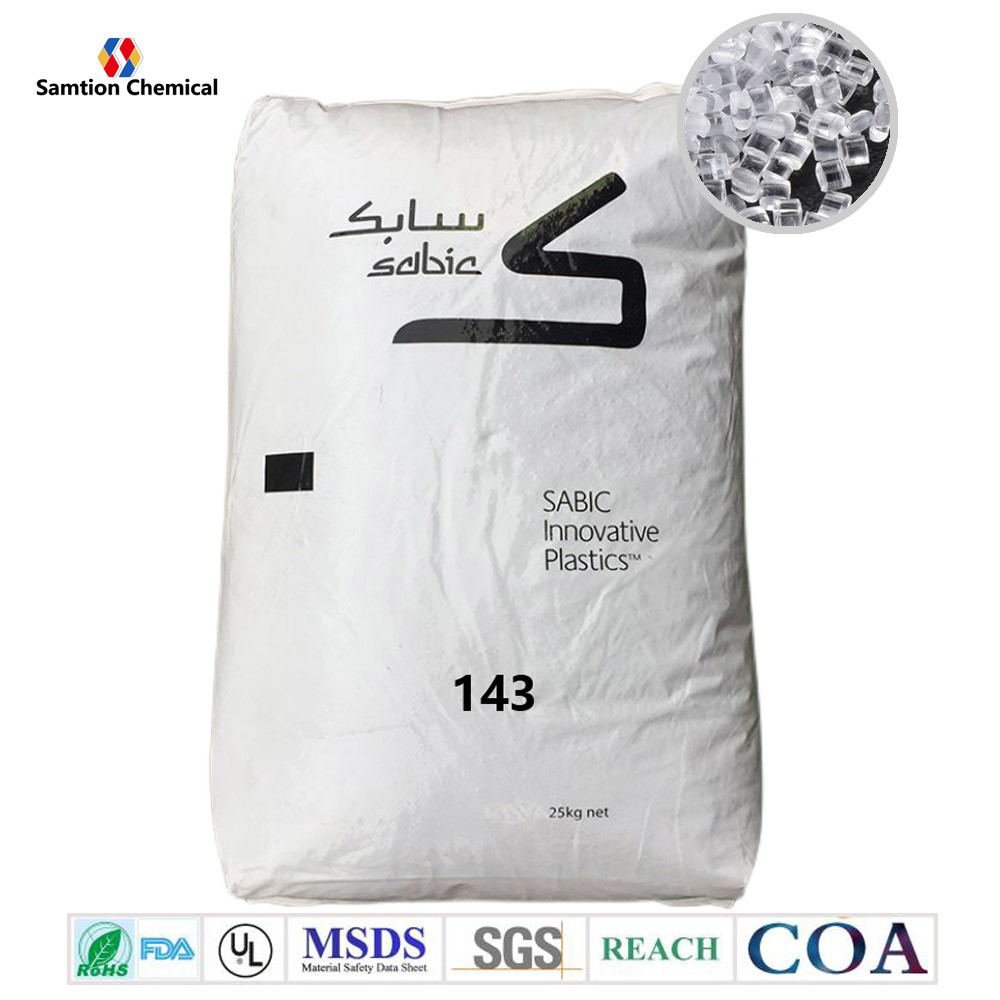

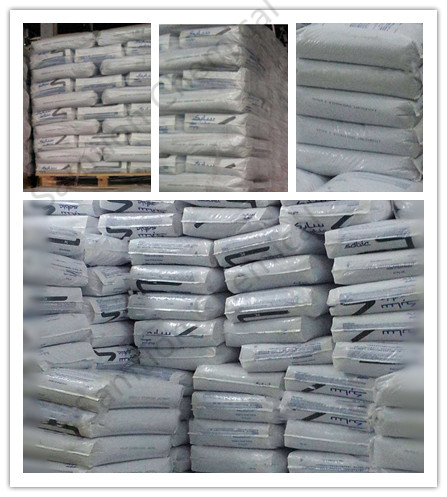

Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Lexan PC 143 Description

UL rated HB as of 10/97. 200 series recommended when V-2 rating required. Nonhalogenated. 10.5 MFR. UV-stabilized.
UV Stabilized S-Plastic Lexan 143 Polycarbonate Plastic Resin HB 10.5 MFR 0
S-Plastics Lexan PC 143 Characteristic

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Hardness, Rockwell M 70 - ASTM D 785
Hardness, Rockwell R 118 - ASTM D 785
Taber Abrasion, CS-17, 1 kg 10 mg/1000cy ASTM D 1044
IMPACT Value Unit Standard
Izod Impact, unnotched, 23°C 3204 J/m ASTM D 4812
Izod Impact, notched, 23°C 801 J/m ASTM D 256
Tensile Impact, Type "S" 546 kJ/m² ASTM D 1822
Falling Dart Impact (D 3029), 23°C 169 J ASTM D 3029
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 154 °C ASTM D 1525
HDT, 0.45 MPa, 6.4 mm, unannealed 137 °C ASTM D 648
HDT, 1.82 MPa, 6.4 mm, unannealed 132 °C ASTM D 648
CTE, -40°C to 95°C, flow 6.84E-05 1/°C ASTM E 831
Specific Heat 1.25 J/g-°C ASTM C 351
PHYSICAL Value Unit Standard
Density 1.19 g/cm³ ASTM D 792
Water Absorption, 24 hours 0.15 % ASTM D 570
Water Absorption, equilibrium, 23C 0.35 % ASTM D 570
Water Absorption, equilibrium, 100°C 0.58 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm 0.5 - 0.7 % S-Plastics Method
Melt Flow Rate, 300°C/1.2 kgf 10.5 g/10 min ASTM D 1238
OPTICAL Value Unit Standard
Light Transmission 88 % ASTM D 1003
Haze 1 % ASTM D 1003
Refractive Index 1.586 - ASTM D 542
ELECTRICAL Value Unit Standard

UV Stabilized S-Plastic Lexan 143 Polycarbonate Plastic Resin HB 10.5 MFR 1

For more information please download the datesheet

UV Stabilized S-Plastic Lexan 143 Polycarbonate Plastic Resin HB 10.5 MFR 2  S-Plastics lexan 143.pdf



Get The Latest Quotation



First-level distribution source in South China

Reduce procurement costs, improve supply stability,

Help you find the most suitable engineering plastic materials



UV Stabilized S-Plastic Lexan 143 Polycarbonate Plastic Resin HB 10.5 MFR 3Click to consult and get the latest quotation within 24 hours!



S-Plastics lexan pc products



S-Plastics Lexan PC Application



S-Plastics Lexan PC is a family of polycarbonate (PC) resins produced by the S-Plastics company.

S-Plastics Lexan PC comes in a range of grades that are designed for different applications. S-Plastics Lexan PC is known for its excellent mechanical properties, including high impact resistance, dimensional stability, and toughness. It also has good chemical resistance, making it suitable for use in harsh environments where it may be exposed to chemicals or other corrosive substances.
