S-Plastics PC EXL9414T Description

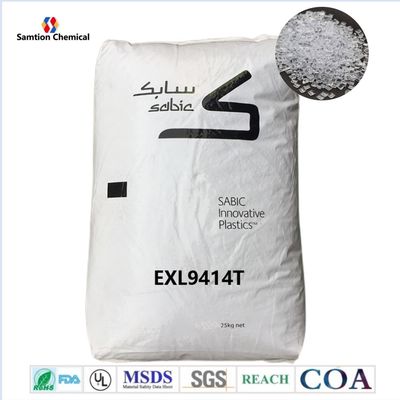

PC EXL9414T
This resin grade is a halogen-free flame retardant polycarbonate featuring transparency, -40 degree C ductility and UL-94 V0 rating for injection molding applications. Excellent impact combined with good flow, all transparent colorability for aesthetics and thin wall flame retradancy makes this product ideal for various thin wall applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 57 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 123.9 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2180 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 92 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2180 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 824 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 712 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 75 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*3 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*3 -30°C | NB | kJ/m² | ISO 180/1U |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate A/50 | 138 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 120 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 6.7E-05 | 1/°C | ASTM E 831 |
| CTE, 23°C to 80°C, xflow | 8.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 138 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 139 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 116 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/1.2 kgf | 13 | g/10 min | ASTM D 1238 |
| Density | 1.19 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.12 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.09 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 12 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.8 | mm | UL 94 |
| Source GMD, last updated:09/01/2008 | |||
|
For more information please see below |
|
|
S-Plastics polycarbonate EXL9414T.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
S-Plastics PC Application
|
S-Plastics PC is a versatile engineering thermoplastic with many applications across a wide range of industries. It is used in automotive parts, electrical and electronic components, medical devices, aerospace components, and building and construction applications. S-Plastics PC is preferred in these applications because of its unique combination of properties, including high impact resistance, excellent clarity, electrical insulation, biocompatibility, and flame retardancy. S-Plastics PC is a popular choice for applications where durability, strength, and performance are important. |
|
