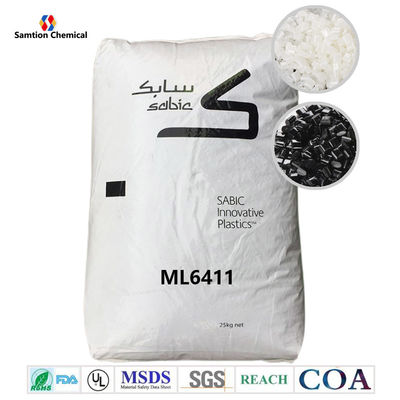

S-Plastics PC ML6411 Description
* ML6411 polycarbonate (PC) siloxane resin, is a high flow opaque injection molding (IM) grade with very low temperature ductility characteristics. This grade offers UL94 V0 @ 1.5mm and 5VA @ 3.0mm flame retardancy based on non-chlorine, non-bromine FR systems. ML6411 resin offers excellent processing characteristics with opportunity for shorter IM cycle times compared to standard PC. This product is available in a wide range of opaque colors and is an excellent candidate for a wide range of electrical applications.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 62 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 54 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 5 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 100 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2500 | MPa | ASTM D 638 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 900 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 150 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 72 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*3 +23°C | 60 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 15 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 134 | °C | ASTM D 1525 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 114 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 128 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 119 | °C | ASTM D 648 |
| Relative Temp Index, Elec | 100 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 100 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 100 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
| Melt Flow Rate, 260°C/2.16 kgf | 7 | g/10 min | ASTM D 1238 |
| Density | 1.2 | g/cm³ | ISO 1183 |
| ELECTRICAL | Value | Unit | Standard |
| Dielectric Strength, in oil, 3.2 mm | 26.5 | kV/mm | ASTM D 149 |
| Hot Wire Ignition {PLC) | 3 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 1 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94-5VA Rating (3)(4) | 3 | mm | UL 94 by GE |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 3 | mm | UL 94 |
| UL Recognized, 94-5VB Rating (3) | 2 | mm | UL 94 |
| Source GMD, last updated:10/06/2004 | |||
|
For more information please see below |
|
|
S-Plastics polycarbonate ML6411.pdf |
|
