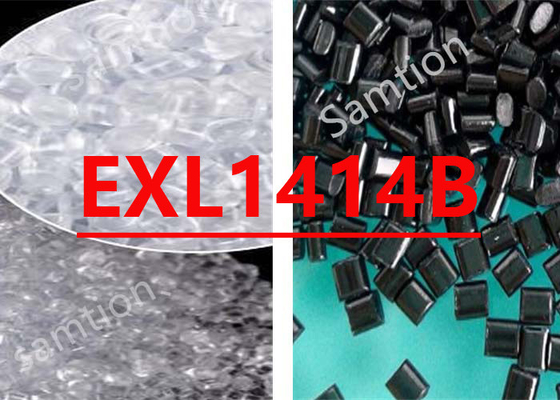

S-Plastics Lexan EXL1414B resin is polycarbonate (PC) siloxane copolymer resin is a BLACK ONLY injection molding (IM) grade modified with anti-microbial additives. This resin offers extreme low temperature (-40 C) ductility in combination with medium flow characteristics and excellent processability with opportunities for shorter IM cycle times compared to standard PC resin. Lexan EXL1414B is an excellent candidate for a wide variety of applications requiring resins modified with anti-microbial additives.
TYPICAL PROPERTIES (1) | |||
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yld, Type I, 50 mm/min | 57 | MPa | ASTM D 638 |
Tensile Stress, brk, Type I, 50 mm/min | 67 | MPa | ASTM D 638 |
Tensile Strain, yld, Type I, 50 mm/min | 6 | % | ASTM D 638 |
Tensile Strain, brk, Type I, 50 mm/min | 135 | % | ASTM D 638 |
Tensile Modulus, 5 mm/min | 2150 | MPa | ASTM D 638 |
Flexural Stress, yld, 1.3 mm/min, 50 mm span | 90 | MPa | ASTM D 790 |
Flexural Modulus, 1.3 mm/min, 50 mm span | 2200 | MPa | ASTM D 790 |
Tensile Stress, yield, 50 mm/min | 57 | MPa | ISO 527 |
Tensile Stress, break, 50 mm/min | 67 | MPa | ISO 527 |
Tensile Strain, yield, 50 mm/min | 6 | % | ISO 527 |
Tensile Strain, break, 50 mm/min | 135 | % | ISO 527 |
Tensile Modulus, 1 mm/min | 2350 | MPa | ISO 527 |
Flexural Stress, yield, 2 mm/min | 84 | MPa | ISO 178 |
Flexural Modulus, 2 mm/min | 2100 | MPa | ISO 178 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 915 | J/m | ASTM D 256 |
Izod Impact, notched, -30°C | 814 | J/m | ASTM D 256 |
Instrumented Impact Total Energy, 23°C | 70 | J | ASTM D 3763 |
Izod Impact, unnotched 80*10*3 +23°C | NB | kJ/m² | ISO 180/1U |
Izod Impact, unnotched 80*10*3 -30°C | NB | kJ/m² | ISO 180/1U |
Izod Impact, notched 80*10*3 +23°C | 70 | kJ/m² | ISO 180/1A |
Izod Impact, notched 80*10*3 -30°C | 60 | kJ/m² | ISO 180/1A |
Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 70 | kJ/m² | ISO 179/1eA |
Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 65 | kJ/m² | ISO 179/1eA |
Charpy 23°C, Unnotch Edgew 80*10*3 sp=62mm | NB | kJ/m² | ISO 179/1eU |
Charpy -30°C, Unnotch Edgew 80*10*3 sp=62mm | NB | kJ/m² | ISO 179/1eU |
THERMAL | Value | Unit | Standard |
Vicat Softening Temp, Rate B/50 | 144 | °C | ASTM D 1525 |
HDT, 1.82 MPa, 3.2mm, unannealed | 128 | °C | ASTM D 648 |
CTE, -40°C to 40°C, flow | 6.4E-06 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 6.6E-06 | 1/°C | ASTM E 831 |
CTE, -40°C to 40°C, flow | 6.4E-06 | 1/°C | ISO 11359-2 |
CTE, -40°C to 40°C, xflow | 6.6E-06 | 1/°C | ISO 11359-2 |
Vicat Softening Temp, Rate B/50 | 144 | °C | ISO 306 |
Vicat Softening Temp, Rate B/120 | 146 | °C | ISO 306 |
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 125 | °C | ISO 75/Af |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.18 | - | ASTM D 792 |
Mold Shrinkage, flow, 3.2 mm | 0.4 - 0.8 | % | S-Plastics Method |
Melt Flow Rate, 300°C/1.2 kgf | 9 | g/10 min | ASTM D 1238 |
Density | 1.18 | g/cm³ | ISO 1183 |
Water Absorption, (23°C/sat) | 0.35 | % | ISO 62 |
Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
Melt Volume Rate, MVR at 300°C/1.2 kg | 8 | cm³/10 min | ISO 1133 |
Source GMD, last updated:10/25/2006 |
Parameter | ||
Injection Molding | Value | Unit |
Drying Temperature | 120 | °C |
Drying Time | 3 - 4 | hrs |
Drying Time (Cumulative) | 48 | hrs |
Maximum Moisture Content | 0.02 | % |
Melt Temperature | 295 - 315 | °C |
Nozzle Temperature | 290 - 310 | °C |
Front - Zone 3 Temperature | 295 - 315 | °C |
Middle - Zone 2 Temperature | 280 - 305 | °C |
Rear - Zone 1 Temperature | 270 - 295 | °C |
Mold Temperature | 70 - 95 | °C |
Back Pressure | 0.3 - 0.7 | MPa |
Screw Speed | 40 - 70 | rpm |
Shot to Cylinder Size | 40 - 60 | % |
Vent Depth | 0.025 - 0.076 | mm |
Source GMD, last updated:10/25/2006 |
