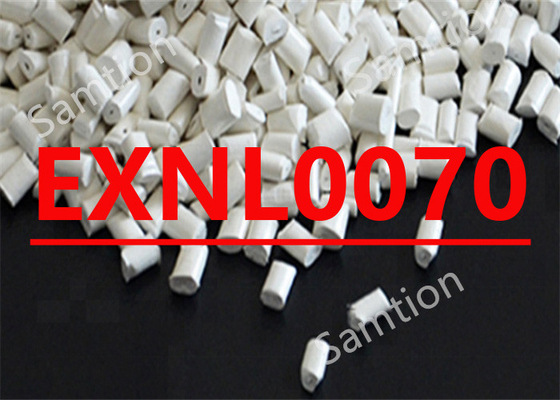

Sabic NoryL EXNL0070 resin is NORYL® EXNL0070 is an unfilled, flame retardant, high flow material and is halogen free according to VDE/DIN 472 part 815
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 5 mm/min | 44 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 40 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 2 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 25 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2350 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 67 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2300 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm | 6 | kJ/m² | ISO 179/1eA |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/120 | 94 | °C | ISO 306 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 70 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.14 | g/cm³ | ISO 1183 |
| Melt Volume Rate, MVR at 280°C/1.2 kg | 30 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 3.1 | mm | UL 94 by GE |
| Source GMD, last updated:09/24/2004 | |||
| Parameter | |||
| Injection Molding | Value | Unit | |
| Drying Temperature | 70 - 80 | °C | |
| Drying Time | 2 - 3 | hrs | |
| Melt Temperature | 250 - 285 | °C | |
| Nozzle Temperature | 240 - 270 | °C | |
| Front - Zone 3 Temperature | 250 - 285 | °C | |
| Middle - Zone 2 Temperature | 230 - 260 | °C | |
| Rear - Zone 1 Temperature | 200 - 220 | °C | |
| Hopper Temperature | 60 - 80 | °C | |
| Mold Temperature | 40 - 65 | °C | |
| Source GMD, last updated:09/24/2004 | |||
Other related products we recommend:
Drinking water / food grade:731,731S,GFN10F,GFN20F,GFN30F,GFN1520V,GFN1630V(Color requirements)
Unreinforce and flame retardant: 0150B,N190X,PX9406P,SE100X
Reinforce and flame retardant: SE1GFN1,SE1GFN2,SE1GFN3,HS2000X
|
For more information please see below |
|
 |
Sabic Noryl EXNL0070.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
Sabic Noryl Resin Application
|
Sabic Noryl PPO is modified polyphenylene oxide (PPO) resins produced by the Sabic company. It is known for its excellent balance of properties, including high heat resistance, dimensional stability, and chemical resistance.
Noryl PPO resins are produced by blending PPO with other materials, such as polystyrene or polyamide.Sabic Noryl PPO include: |
|
|
| 3. Chemical resistance: Sabic Noryl PPO has good chemical resistance. It is commonly used in automotive and electrical applications where chemical resistance is important. 4. Good electrical properties: Sabic Noryl PPO has good electrical properties. This makes it suitable for use in electrical and electronic applications, such as connectors and switches. 5. Ease of processing: Sabic Noryl PPO is easy to process and can be easily molded into complex shapes with thin walls. |
||
