Sabic Lexan EX1332T Polycarbonate Resin, MVR (300C/1.2kg) 2 Cm3/10min, High Viscosity, Branched, Extrusion, Mold Release

100KG
MOQ
*USD
Price
Sabic Lexan EX1332T Polycarbonate Resin, MVR (300C/1.2kg) 2 Cm3/10min, High Viscosity, Branched, Extrusion, Mold Release
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Volume Rate, MVR At 300°C/1.2 Kg: 2
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: EX1332T
Payment & Shipping Terms

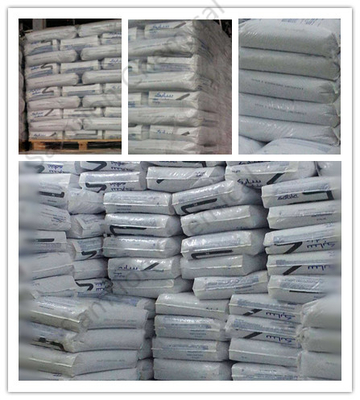

Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

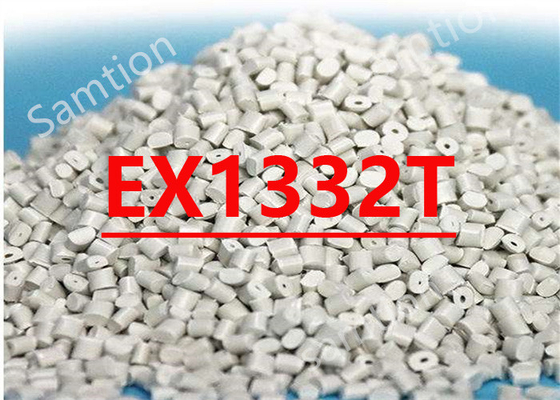

Sabic Lexan  EX1332T resin is polycarbonate resin, MVR (300C/1.2kg) 2 cm3/10min, high viscosity, branched, extrusion, mold release, UV stabilized,transparent, translucent and opaque colors. Multiwall sheet, Profiles.


Property

TYPICAL PROPERTIES (1)
MECHANICALValueUnitStandard
Tensile Stress, yield, 50 mm/min65MPaISO 527
Tensile Stress, break, 50 mm/min70MPaISO 527
Tensile Strain, yield, 50 mm/min7%ISO 527
Tensile Strain, break, 50 mm/min>70%ISO 527
Tensile Modulus, 1 mm/min2350MPaISO 527
Flexural Stress, yield, 2 mm/min95MPaISO 178
Flexural Modulus, 2 mm/min2300MPaISO 178
IMPACTValueUnitStandard
Izod Impact, unnotched 80*10*3 +23°CNBkJ/m²ISO 180/1U
Izod Impact, unnotched 80*10*3 -30°CNBkJ/m²ISO 180/1U
Izod Impact, notched 80*10*3 +23°C75kJ/m²ISO 180/1A
Izod Impact, notched 80*10*3 -30°C55kJ/m²ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm70kJ/m²ISO 179/1eA
Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm50kJ/m²ISO 179/1eA
Charpy 23°C, Unnotch Edgew 80*10*3 sp=62mmNBkJ/m²ISO 179/1eU
Charpy -30°C, Unnotch Edgew 80*10*3 sp=62mmNBkJ/m²ISO 179/1eU
THERMALValueUnitStandard
Thermal Conductivity0.2W/m-°CISO 8302
CTE, 23°C to 80°C, flow7.E-051/°CISO 11359-2
Ball Pressure Test, 125°C +/- 2°CPASSES-IEC 60695-10-2
Vicat Softening Temp, Rate B/50149°CISO 306
Vicat Softening Temp, Rate B/120150°CISO 306
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm130°CISO 75/Af
PHYSICALValueUnitStandard
Mold Shrinkage, flow, 3.2 mm (5)0.5 - 0.7%SABIC Method
Density1.2g/cm³ISO 1183
Water Absorption, (23°C/sat)0.35%ISO 62
Moisture Absorption (23°C / 50% RH)0.15%ISO 62
Melt Volume Rate, MVR at 300°C/1.2 kg2cm³/10 minISO 1133
Melt Volume Rate, MVR at 300°C/2.16 kg4cm³/10 minISO 1133
Source GMD, last updated:2010/06/10

Processing

Parameter
Multiwall Sheet ExtrusionValueUnit
Drying Temperature120°C
Drying Time2 - 4hrs
Barrel - Zone 1 Temperature260 - 300°C
Barrel - Zone 2 Temperature260 - 290°C
Barrel - Zone 3 Temperature260 - 290°C
Hopper Temperature100 - 120°C
Adapter Temperature240 - 280°C
Die Temperature240 - 300°C
Melt Temperature260 - 300°C
Calibrator Temperature50 - 100°C
Source GMD, last updated:2010/06/10



For more information please download the datasheet

Sabic Lexan EX1332T Polycarbonate Resin, MVR (300C/1.2kg) 2 Cm3/10min, High Viscosity, Branched, Extrusion, Mold Release 0 Sabic Lexan EX1332T.pdf
