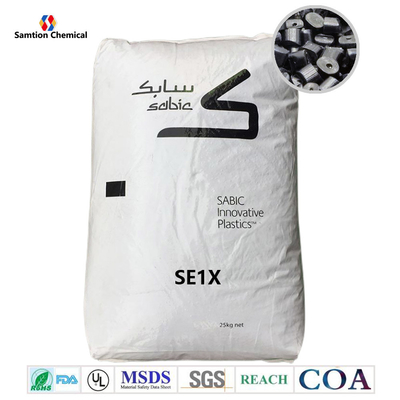

Sabic NoryL SE1X flame retardant PPE+PS blend.It is suitable for E/E market indoor/outdoor applications. It is Nonbrominated, nonchlorinated, flame retarded. UL94 V1, UL746C F1. NORYL SE1X offers strong electrical performance at thin wall, high heat resistance, Low Warpage, low moisture absorption, and dimensional stability. Recommended for electrical/electronics applications.
Noryl* Resin SE1X
Property
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 65 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 50 mm/min | 53 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 50 mm/min | 4 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 15 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 2500 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 100 | MPa | ASTM D 790 |
| Flexural Stress, yld, 2.6 mm/min, 100 mm span | 98 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2700 | MPa | ASTM D 790 |
| Flexural Modulus, 2.6 mm/min, 100 mm span | 2400 | MPa | ASTM D 790 |
| Tensile Stress, yield, 50 mm/min | 61 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 50 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 4.3 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 20.7 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2670 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 99 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2560 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2600 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 180 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 106 | J/m | ASTM D 256 |
| Instrumented Impact Total Energy, 23°C | 49 | J | ASTM D 3763 |
| Izod Impact, notched 80*10*4 +23°C | 14 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 126 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 112 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 129 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 118 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 8.04E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 8.81E-05 | 1/°C | ASTM E 831 |
| Vicat Softening Temp, Rate B/50 | 132 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 135 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 129 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 115 | °C | ISO 75/Ae |
| Relative Temp Index, Elec | 110 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 105 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 110 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.09 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.06 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | SABIC Method |
| Mold Shrinkage on Tensile Bar, xflow (2) | 0.5 - 0.7 | % | SABIC Method |
| Melt Flow Rate, 280°C/5.0 kgf | 8.5 | g/10 min | ASTM D 1238 |
| Melt Volume Rate, MVR at 280°C/5.0 kg | 8 | cm³/10 min | ISO 1133 |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | 2.3E+16 | Ohm-cm | ASTM D 257 |
| Surface Resistivity | >1.E+15 | Ohm | ASTM D 257 |
| Dielectric Strength, in oil, 3.2 mm | 18.1 | kV/mm | ASTM D 149 |
| Relative Permittivity, 50/60 Hz | 2.52 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 2.46 | - | ASTM D 150 |
| Dissipation Factor, 50/60 Hz | 0.0034 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.0021 | - | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 6 | PLC Code | ASTM D 495 |
| High Voltage Arc Track Rate {PLC} | 4 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 1 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-1 Flame Class Rating (3) | 1.47 | mm | UL 94 |
| UL Recognized, 94V-0 Flame Class Rating (3) | 5.99 | mm | UL 94 |
| Radiant Panel Listing | RP100 | - | UL Tested |
| UV-light, water exposure/immersion | F1 | - | UL 746C |
| Source GMD, last updated:05/11/2004 | |||
Processing
| Injection Molding | Value | Unit |
| Drying Temperature | 105 - 110 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 8 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 280 - 310 | °C |
| Nozzle Temperature | 280 - 310 | °C |
| Front - Zone 3 Temperature | 270 - 310 | °C |
| Middle - Zone 2 Temperature | 260 - 305 | °C |
| Rear - Zone 1 Temperature | 250 - 300 | °C |
| Mold Temperature | 75 - 105 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 20 - 100 | rpm |
| Shot to Cylinder Size | 30 - 70 | % |
| Source GMD, last updated:05/11/2004 | ||
| THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES. | ||
| PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION | ||
