SABIC SOLUTIONS FOR AUTOMOTIVE: ELECTRICAL

June 21, 2024

Latest company case about SABIC SOLUTIONS FOR AUTOMOTIVE: ELECTRICAL

Vehicle electrification demands high-performance, durable and reliable materials for high- and low-voltage applications such as battery components, connectors, chargers, power distribution boxes and electronic module housings. At the same time, shrinking package space is driving the need for thin-wall designs and miniaturization.



SABIC supplies a wide range of thermoplastics for electrical applications in battery, plug-in hybrid and internal combustion electric vehicles (EVs). Our portfolio provides easy processing, flame retardancy, and excellent mechanical and electrical performance, including impact strength and stiffness and a high Comparative Tracking Index (CTI). In addition to proven materials, we offer expert engineering resources and other technical assistance to support design optimization and manufacturing.



Material solutions for automotive electrical applications leverages products and expertise developed under SABIC’s BLUEHERO™ electrification initiative.



FEATURED PRODUCT BRANDS
SABIC® PP compound

Easily processed short glass fiber-reinforced PP with a low flammability rating and excellent mechanical and electrical performance.

STAMAX™

Long glass fiber-reinforced PP materials featuring easy processing and excellent mechanical and electrical properties.

VALOX™

PBT resins delivering good stiffness, hydrolytic stability, flame retardance, high CTI performance and good flow.

CYCOLOY™

PC/ABS blends offering a combination of flow and impact and non-halogenated flame retardance.

LEXAN™

PC materials that provide excellent ductility and heat performance, and non-halogenated flame retardance.

XENOY™

High-heat polyester alloys providing high flow and excellent stiffness with heat stabilization for complex part designs.

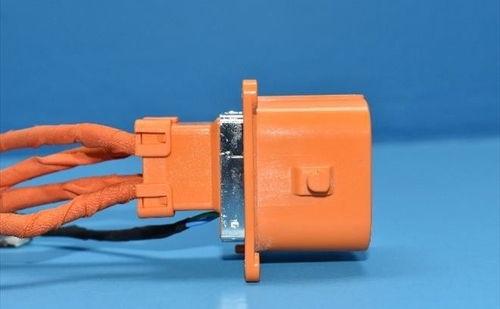

THIN-WALL CONNECTORS
In response to the clear miniaturization trend in electrical components, thin-wall designs are being used for housings in both low-voltage standard automotive connectors and high voltage connectors. However, these thinner walls cannot sacrifice performance properties such as mechanical robustness and effective electrical insulation. Other requirements for these connectors include manufacturability and cost-effectiveness.


Featured Product Grades

VALOX™ 771

Polybutylene terephthalate (PBT) resin; reinforced with 15% glass fiber and 20% minerals; flame retardant; UL-94 (V0/5VA/V2) flame rating.

VALOX™ 325

PBT resin; unfilled; general purpose; UL 94HB rating.

VALOX™ 310SE0

PBT resin; unreinforced; flame retardant; UL94V0@0.71mm and 5VA@3.0mm flame rating; injection molding grade.

VALOX™ 4031

PBT resin; 30% glass fiber reinforced; UL 94HB rating; injection molding grade.

VALOX™ 420SE0

PBT resin; 30% glass fiber reinforced; flame retardant; UL94V0@0.71mm and 5VA@2.0mm flame rating; injection molding grade.

VALOX™ K4560

PBT resin; 30% glass fiber reinforced; impact modified; high flow; hydrolytically stable; injection molding grade.

VALOX™ V4860HR

PBT resin; 30% glass fiber reinforced; impact modified, hydrolytically stable; flame retardant; UL94V0@0.80 flame rating; injection molding grade.

VALOX™ V4760

PBT resin; 30% glass fiber reinforced; high flow; flame retardant; UL94V0@0.28mm and 5VA@1.5mm flame rating; injection molding grade.



HIGH-VOLTAGE EV POWER ELECTRONICS
Electric vehicles require efficient high voltage levels compared to outdated 12-volt systems to power the motor, support the proliferation of advanced driver assistance systems (ADAS) and meet the demands of higher-power processors in computing systems. In addition to accommodating higher voltages, materials for power distribution boxes, central electric junction boxes, and electronic control and switching units should deliver low warpage and low flammability ratings, high CTI and easy processing.


Featured Product Grades

VALOX™ K4560

PBT resin; 30% glass fiber reinforcement; impact modified; high flow; hydrolytically stable; injection molding grade.

VALOX™ V4860HR

PBT resin; 30% glass fiber reinforcement; impact modified; hydrolytically stable; flame retardant; UL94V0@0.80 flame rating; injection molding grade.

VALOX™ V4760

PBT resin; 30% glass fiber reinforced; high flow; flame retardant; UL94V0@0.28mm and 5VA@1.5mm flame rating; injection molding grade.

VALOX™ 771

PBT resin; reinforced with 15% glass fiber and 20% minerals; flame retardant; UL-94 (V0/5VA/V2) flame rating.

SABIC® PP compound H1015

Polypropylene (PP) homopolymer; 15% glass fiber reinforcement; high flow; non-halogenated flame retardant; UL94 V0@3.0mm flame rating; injection molding grade

SABIC® PP compound H1025

PP homopolymer; 25% glass fiber reinforcement; high flow; non-halogenated flame retardant; UL94V0@1.5mm and 5VA@3.0mm flame rating; injection molding grade.

SABIC® PP compound H1030

PP homopolymer; 30% glass fiber reinforcement; high flow, non-halogenated flame retardant; UL94V0@1.5mm and 5VA@3.0mm flame rating; injection molding grade.

STAMAX™ 30YH515

PP copolymer; 30% long glass fiber reinforcement; high flow; non-halogenated flame retardant; UL94V0@1.5mm flame rating, injection molding grade.

STAMAX™ 30YH530

PP copolymer; 30% long glass fiber reinforcement; high flow, stiffness and strength; non-halogenated flame retardancy; UL94V0@3.0mm flame rating, injection molding grade.

CYCOLOY™ C6600

Polycarbonate/acrylonitrile-butadiene-styrene (PC/ABS) blend; balanced flow; good impact and chemical resistance; hydrolytic stability; non-halogenated flame retardancy; UL94 V0@1.5mm and 5VB@2.0mm flame rating; colorability in opaque colors; injection molding grade.

CYCOLOY™ CY6414

Impact-modified PC blend; high-temperature resistance; medium flow; non-halogenated flame retardancy; UL94 V0@1.2mm and 5VB@2.5mm flame rating; injection molding grade.

LEXAN™ 925

Polycarbonate (PC) resin; 14 MFR/13 MVR; good mold release; non-halogenated flame retardancy; UL94 V0@1.1mm flame rating; opaque colors; injection molding grade.

LEXAN™ 925A

PC resin; 13 MFR/13 MVR; non-halogenated flame retardancy; UL94 V0@3.0mm rated; transparent and translucent colors; injection molding grade

LEXAN™ 945

PC resin; 10 MFR/10 MVR; good mold release; non-halogenated flame retardancy; UL94 V0@1.0mm and 5VA@3.0mm flame rating; opaque colors; injection molding grade.

LEXAN™ 945A

PC resin; 10 MFR/10 MVR; non-halogenated flame retardancy; UL94 V0@3.0mm flame rating; transparent; various color options; injection molding grade.



EV CHARGING INFRASTRUCTURE
Increasingly stringent regulation of electric vehicles, together with consumer demands for faster charging speeds, greater efficiency and improved safety for charging infrastructure, demand high-performance materials for applications such as high-voltage chargers and inlets and EV service disconnect switches. Requirements include high impact, dimensional stability, flame retardance, chemical resistance and excellent electrical properties.



Featured Product Grades

VALOX™ 357X(U)

PBT resin; unreinforced; UV stabilized; impact modified; flame retardant; UL94V0@0.75mm and 5VA@2.5mm flame rating; injection molding grade.

VALOX™ V4860HR

PBT resin; 30% glass fiber reinforced; impact modified, hydrolytically stable; flame retardant; UL94V0@0.80mm flame rating; injection molding grade.

SABIC® PP compound H1015

Polypropylene (PP) homopolymer; 15% glass fiber reinforcement; high flow; non-halogenated flame retardant; UL94 V0@3mm flame rating; injection molding grade.

SABIC® PP compound H1025

PP homopolymer; 25% glass fiber reinforcement; high flow; non-halogenated flame retardant; UL94V0@1.5mm and 5VA@3.0mm flame rating; injection molding grade.

SABIC® PP compound H1030

PP homopolymer; 30% glass fiber reinforced; high flow; non-halogenated flame retardant; UL94V0@1.5mm and 5VA@3.0mm flame rating; injection molding grade.

STAMAX™ 30YH515

PP copolymer; 30% long glass fiber reinforcement; high flow; non-halogenated flame retardant; UL94V0@1.5mm flame rating, injection molding grade.

STAMAX™ 30YH530

PP copolymer; 30% long glass fiber reinforced; high flow, stiffness and strength; non-halogenated flame retardant; UL94V0@3.0mm flame rating, injection molding grade.

CYCOLOY™ C6600

Polycarbonate/acrylonitrile-butadiene-styrene (PC/ABS) blend; balanced flow; good impact and chemical resistance; hydrolytic stability; non-halogenated flame retardancy; UL94 V0@1.5mm and 5VB@2.0mm flame rating; colorability in opaque colors; injection molding grade.

CYCOLOY™ CY6414

Impact-modified PC blend; high-temperature resistant; medium flow; non-halogenated flame retardancy; UL94 V0@1.2mm and 5VB@2.5mm flame rating; injection molding grade.

LEXAN™ 925

Polycarbonate (PC) resin; 14 MFR/13 MVR; good mold release; non-halogenated flame retardancy; UL94 V0 flame rating; opaque colors; injection molding grade.

LEXAN™ 925A

PC resin; 13 MFR/13 MVR of 13; non-halogenated flame retardancy; UL94 V0 rated; transparent and translucent colors; injection molding grade.

LEXAN™ 945

PC resin; 10 MFR/10 MVR; good mold release; non-halogenated flame retardancy; UL94 V0@1.0mm and 5VA@3.0mm flame rating; opaque colors; injection molding grade.

LEXAN™ 945A

PC resin; 10 MFR/10 MVR; non-halogenated flame retardant; UL94 V0@3.0mm flame rating; transparent; various color options; injection molding grade.





Ps: The above news come from sabic official website.
