December 23, 2022
Grade：Lexan 503R
Date sheet：10% GR PC. Optimum combination of high modulus plus excellent impact strength and flame retardance. UV-stabilized. Internal mold release
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 66 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 55 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 8 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 15 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 103 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3440 | MPa | ASTM D 790 |
| Hardness, Rockwell M | 85 | - | ASTM D 785 |
| Hardness, Rockwell R | 124 | - | ASTM D 785 |
| Taber Abrasion, CS-17, 1 kg | 11 | mg/1000cy | ASTM D 1044 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 2136 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 106 | J/m | ASTM D 256 |
| Tensile Impact, Type "S" | 157 | kJ/m² | ASTM D 1822 |
| Falling Dart Impact (D 3029), 23°C | 101 | J | ASTM D 3029 |
| THERMAL | Value | Unit | Standard |
| Vicat Softening Temp, Rate B/50 | 154 | °C | ASTM D 1525 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 146 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 142 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 3.24E-05 | 1/°C | ASTM E 831 |
| Specific Heat | 1.21 | J/g-°C | ASTM C 351 |
| Thermal Conductivity | 0.2 | W/m-°C | ASTM C 177 |
| Relative Temp Index, Elec | 120 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 110 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 125 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.25 | - | ASTM D 792 |
| Specific Volume | 0.8 | cm³/g | ASTM D 792 |
| Density | 1.245 | g/cm³ | ASTM D 792 |
| Water Absorption, 24 hours | 0.12 | % | ASTM D 570 |
| Water Absorption, equilibrium, 23C | 0.31 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.2 - 0.4 | % | SABIC Method |
| ELECTRICAL | Value | Unit | Standard |
| Volume Resistivity | >1.E+17 | Ohm-cm | ASTM D 257 |
| Dielectric Strength, in air, 3.2 mm | 17.7 | kV/mm | ASTM D 149 |
| Relative Permittivity, 50/60 Hz | 3.1 | - | ASTM D 150 |
| Relative Permittivity, 1 MHz | 3.05 | - | ASTM D 150 |
| Dissipation Factor, 50/60 Hz | 0.0008 | - | ASTM D 150 |
| Dissipation Factor, 1 MHz | 0.0075 | - | ASTM D 150 |
| Arc Resistance, Tungsten {PLC} | 7 | PLC Code | ASTM D 495 |
| Hot Wire Ignition {PLC) | 1 | PLC Code | UL 746A |
| High Voltage Arc Track Rate {PLC} | 3 | PLC Code | UL 746A |
| High Ampere Arc Ign, surface {PLC} | 1 | PLC Code | UL 746A |
| Comparative Tracking Index (UL) {PLC} | 4 | PLC Code | UL 746A |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 1.52 | mm | UL 94 |
| UL Recognized, 94-5VA Rating (3) | 2.99 | mm | UL 94 |
| Oxygen Index (LOI) | 36 | % | ASTM D 2863 |
| UV-light, water exposure/immersion | F1 | - | UL 746C |

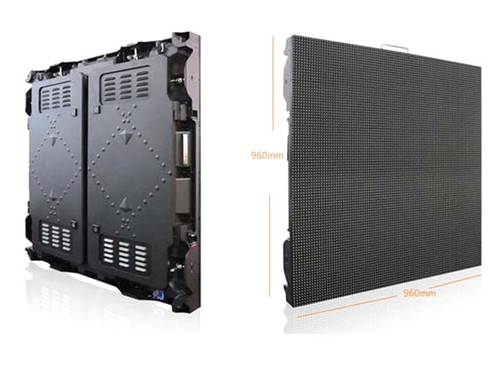

Application sharing: Bottom shell /Cover of Outdoor display screen
