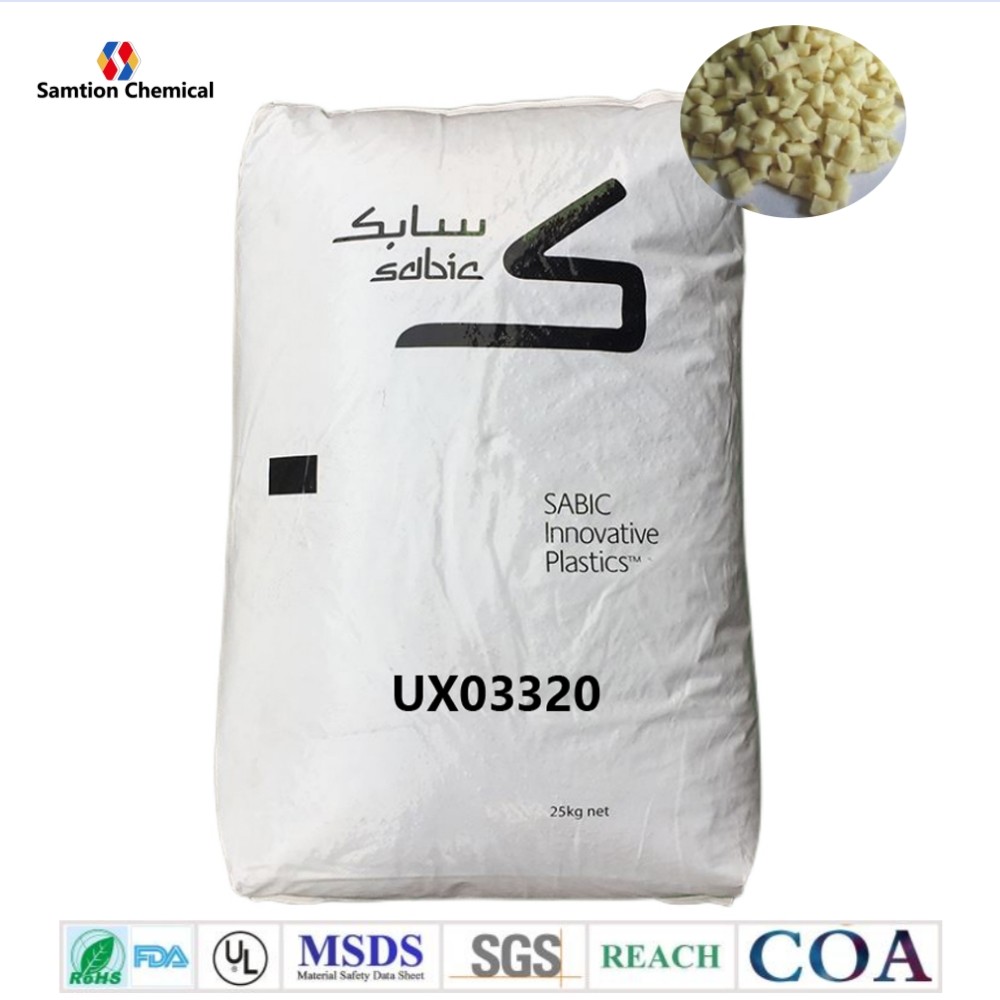

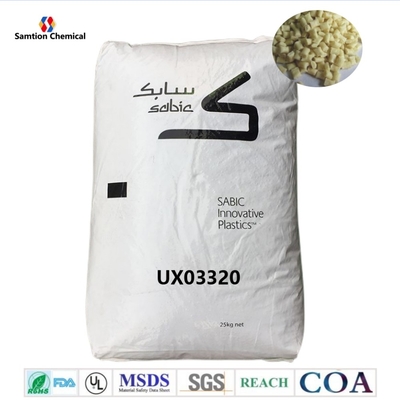

S-Plastics Verton UX03320 resin is a compound based on Polyphthalamide resin containing Long Glass.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 220 | MPa | ASTM D 638 |
| Tensile Strain, break | 1.9 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 18200 | MPa | ASTM D 638 |
| Flexural Stress | 300 | MPa | ASTM D 790 |
| Flexural Modulus | 18000 | MPa | ASTM D 790 |
| Tensile Stress, break | 245 | MPa | ISO 527 |
| Tensile Stress, break | 200 | MPa | ISO 527 |
| Tensile Strain, break | 1.5 | % | ISO 527 |
| Tensile Strain, break | 1.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 20360 | MPa | ISO 527 |
| Tensile Modulus, 1 mm/min | 20300 | MPa | ISO 527 |
| Flexural Stress | 360 | MPa | ISO 178 |
| Flexural Stress, break, 2 mm/min | 360 | MPa | ISO 178 |
| Flexural Modulus | 17700 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 17700 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 800 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 300 | J/m | ASTM D 256 |
| Multiaxial Impact | 19 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 15 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 70 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 38 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 +23°C | 38 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 260 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 1.2E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 2.2E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, flow | 1.2E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 2.2E-05 | 1/°C | ISO 11359-2 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 276 | °C | ISO 75/Af |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 275 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.63 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.2 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs | 0.05 - 0.1 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.08 - 0.2 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.06 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.15 | % | ISO 294 |
| Spiral flow (1mm) | 30 | cm | S-Plastics Method |
| Spiral flow (3mm) | 70 | cm | S-Plastics Method |
| Density | 1.63 | g/cm³ | ISO 1183 |
| Density | 1.63 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.3 | % | ISO 62 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94HB Flame Class Rating (3) | 0.8 | mm | UL 94 |
| Source GMD, last updated:02/08/2008 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 | % |
| Melt Temperature | 315 - 330 | °C |
| Front - Zone 3 Temperature | 330 - 345 | °C |
| Middle - Zone 2 Temperature | 320 - 330 | °C |
| Rear - Zone 1 Temperature | 315 - 325 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:02/08/2008 | ||
|
