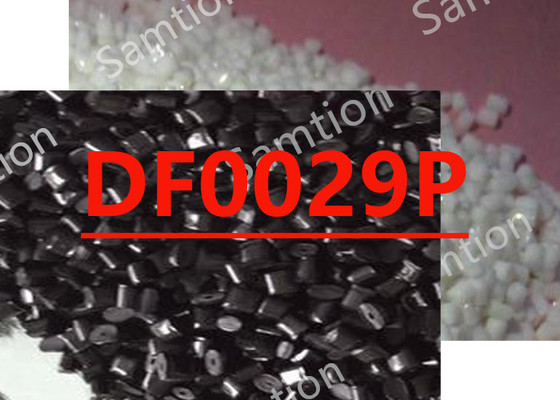

S-Plastics Thermocomp DF0029P resin is a compound based on Polycarbonate resin containing Glass Fiber, Flame Retardant. Added features
of this material include: Exceptional Processing.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break | 92 | MPa | ASTM D 638 |
| Tensile Strain, break | 3.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 4610 | MPa | ASTM D 638 |
| Flexural Stress | 155 | MPa | ASTM D 790 |
| Flexural Modulus | 4680 | MPa | ASTM D 790 |
| Tensile Stress, break | 93 | MPa | ISO 527 |
| Tensile Strain, break | 3.8 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 4800 | MPa | ISO 527 |
| Flexural Stress | 158 | MPa | ISO 178 |
| Flexural Modulus | 5000 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 405 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 42 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 5 | J | ASTM D 3763 |
| Multiaxial Impact | 1 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 33 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 5 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 140 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 136 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 134 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.318 | g/cm³ | ASTM D 792 |
| Mold Shrinkage, flow, 24 hrs | 0.4 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.4 | % | ASTM D 955 |
| Mold Shrinkage, flow, 24 hrs | 0.42 | % | ISO 294 |
| Mold Shrinkage, xflow, 24 hrs | 0.48 | % | ISO 294 |
| Density | 1.31 | g/cm³ | ISO 1183 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Compliant, 94V-0 Flame Class Rating (3)(4) | 0.64 | mm | UL 94 by GE |
| Source GMD, last updated:09/27/2004 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 305 - 325 | °C |
| Front - Zone 3 Temperature | 320 - 330 | °C |
| Middle - Zone 2 Temperature | 310 - 320 | °C |
| Rear - Zone 1 Temperature | 295 - 305 | °C |
| Mold Temperature | 80 - 110 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:09/27/2004 | ||
