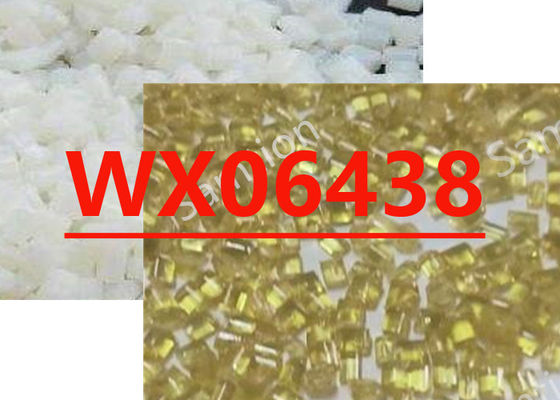

S-Plastics Thermocomp WX06438 resin is a compound based on Polybutylene Terephalate resin containing Glass Fiber. Added features of thismaterial include: Clean Compounding System.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield | 120 | MPa | ASTM D 638 |
| Tensile Stress, break | 120 | MPa | ASTM D 638 |
| Tensile Strain, yield | 2.3 | % | ASTM D 638 |
| Tensile Strain, break | 2.3 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 10020 | MPa | ASTM D 638 |
| Flexural Stress | 172 | MPa | ASTM D 790 |
| Flexural Modulus | 8790 | MPa | ASTM D 790 |
| Tensile Stress, yield | 119 | MPa | ISO 527 |
| Tensile Stress, break | 119 | MPa | ISO 527 |
| Tensile Strain, yield | 2.1 | % | ISO 527 |
| Tensile Strain, break | 2.1 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9520 | MPa | ISO 527 |
| Flexural Stress | 162 | MPa | ISO 178 |
| Flexural Modulus | 8180 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 660 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 74 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 13 | J | ASTM D 3763 |
| Multiaxial Impact | 2 | J | ISO 6603 |
| Izod Impact, unnotched 80*10*4 +23°C | 40 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 206 | °C | ASTM D 648 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 203 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.52 | g/cm³ | ASTM D 792 |
| Source GMD, last updated:02/27/2007 | |||
