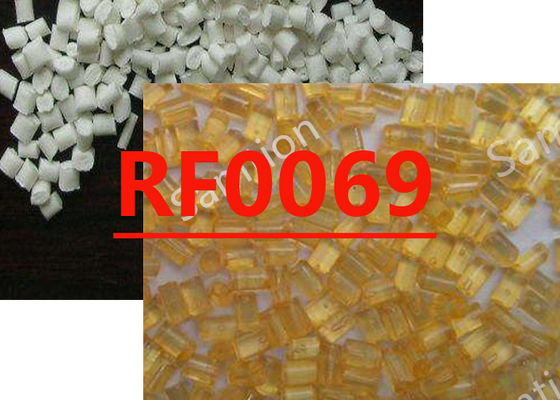

S-Plastics Thermocomp RF0069F resin is Flame retarded, 30% glass fibre reinforced Polyamide 66 injection moulding resin.
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, break, 5 mm/min | 165 | MPa | ISO 527 |
| Tensile Strain, break, 5 mm/min | 2 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 9500 | MPa | ISO 527 |
| Flexural Stress, break, 2 mm/min | 190 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 9300 | MPa | ISO 178 |
| Hardness, Rockwell L | 108 | - | ISO 2039-2 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*4 -20°C | 7 | kJ/m² | ISO 180/1A |
| Charpy 23°C, Unnotch Edgew 80*10*4 sp=62mm | 60 | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| CTE, 23°C to 60°C, flow | 2.3E-05 | 1/°C | ISO 11359-2 |
| CTE, 23°C to 60°C, xflow | 7.2E-05 | 1/°C | ISO 11359-2 |
| Ball Pressure Test, 125°C +/- 2°C | PASSES | - | IEC 60695-10-2 |
| Vicat Softening Temp, Rate B/120 | 258 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 262 | °C | ISO 75/Be |
| HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 248 | °C | ISO 75/Ae |
| Relative Temp Index, Elec | 65 | °C | UL 746B |
| Relative Temp Index, Mech w/impact | 65 | °C | UL 746B |
| Relative Temp Index, Mech w/o impact | 65 | °C | UL 746B |
| PHYSICAL | Value | Unit | Standard |
| Mold Shrinkage on Tensile Bar, flow (2) | 0.2 - 0.3 | % | S-Plastics Method |
| Density | 1.58 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 4 | % | ISO 62 |
| ELECTRICAL | Value | Unit | Standard |
| Comparative Tracking Index | 375 | V | IEC 60112 |
| Comparative Tracking Index, M | 275 | V | IEC 60112 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 0.75 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 2 | mm | IEC 60695-2-12 |
| Oxygen Index (LOI) | 31 | % | ISO 4589 |
| Source GMD, last updated:11/05/2003 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 75 - 85 | °C |
| Drying Time | 4 - 6 | hrs |
| Maximum Moisture Content | 0.2 | % |
| Melt Temperature | 260 - 280 | °C |
| Nozzle Temperature | 250 - 270 | °C |
| Front - Zone 3 Temperature | 260 - 280 | °C |
| Middle - Zone 2 Temperature | 260 - 280 | °C |
| Rear - Zone 1 Temperature | 270 - 290 | °C |
| Hopper Temperature | 60 - 80 | °C |
| Mold Temperature | 70 - 100 | °C |
| Source GMD, last updated:11/05/2003 | ||
