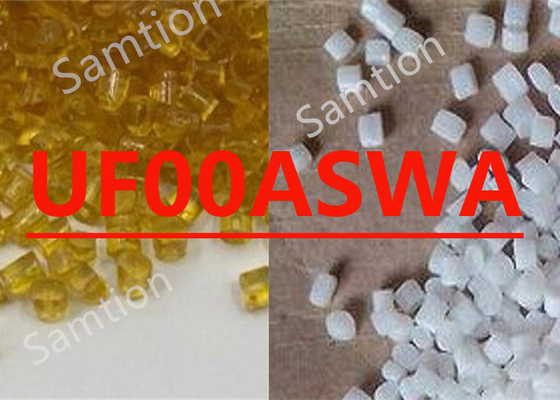

S-Plastics Thermocomp UF00ASWA resin is a compound based on Polyphthalamide (PPA) containing glass fiber. Characteristics of this grade ofHeat Stabilized and Hot Water Moldable.
| MECHANICAL | Value | Unit | Standard |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 335 | MPa | ASTM D 790 |
| Flexural Stress, brk, 1.3 mm/min, 50 mm span | 337 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 17500 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 214 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 214 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 1.4 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 19060 | MPa | ISO 527 |
| Flexural Stress | 324 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 17240 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 788 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 91 | J/m | ASTM D 256 |
| Multiaxial Impact | 3 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 6 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 45 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 9 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 0.45 MPa, 3.2 mm, unannealed | 297 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 3.2mm, unannealed | 285 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 2.4E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 4.3E-05 | 1/°C | ASTM E 831 |
| HDT/Bf, 0.45 MPa Flatw 80*10*4 sp=64mm | 296 | °C | ISO 75/Bf |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 281 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.65 | - | ASTM D 792 |
| Density | 1.65 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.27 | % | ASTM D 570 |
| Mold Shrinkage, flow, 24 hrs (5) | 0.2 - 0.5 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs (5) | 0.6 - 0.9 | % | ASTM D 955 |
| Moisture Absorption (23°C / 50% RH) | 0.33 | % | ISO 62 |
| Source GMD, last updated:2009/12/31 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 - 150 | °C |
| Drying Time | 4 | hrs |
| Maximum Moisture Content | 0.15 - 0.15 | % |
| Melt Temperature | 315 - 330 | °C |
| Front - Zone 3 Temperature | 325 - 340 | °C |
| Middle - Zone 2 Temperature | 315 - 325 | °C |
| Rear - Zone 1 Temperature | 310 - 320 | °C |
| Mold Temperature | 140 - 165 | °C |
| Back Pressure | 0.2 - 0.3 | MPa |
| Screw Speed | 30 - 60 | rpm |
| Source GMD, last updated:2009/12/31 | ||
