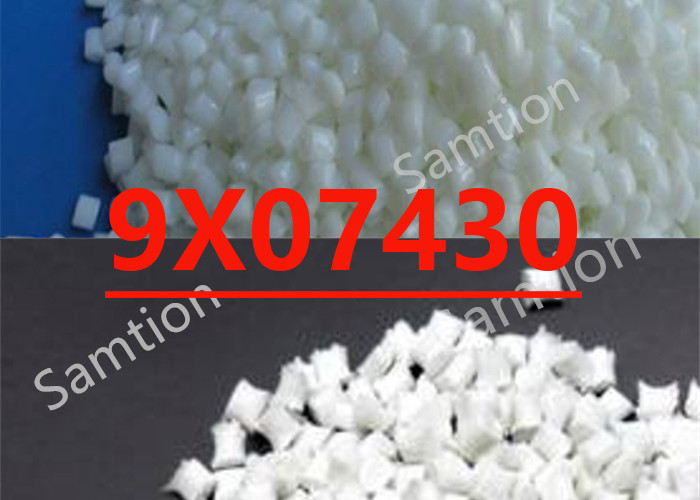

S-Plastics Thermocomp 9X07430 resin is PBT+PC Alloy, Glass and Mineral Filled, Opaque, Weatherable
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 5 mm/min | 57 | MPa | ASTM D 638 |
| Tensile Stress, brk, Type I, 5 mm/min | 51 | MPa | ASTM D 638 |
| Tensile Strain, yld, Type I, 5 mm/min | 2.9 | % | ASTM D 638 |
| Tensile Strain, brk, Type I, 5 mm/min | 4.8 | % | ASTM D 638 |
| Tensile Modulus, 50 mm/min | 3300 | MPa | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 99 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 3140 | MPa | ASTM D 790 |
| Tensile Stress, yield, 5 mm/min | 60 | MPa | ISO 527 |
| Tensile Stress, break, 5 mm/min | 56 | MPa | ISO 527 |
| Tensile Strain, yield, 5 mm/min | 3.1 | % | ISO 527 |
| Tensile Strain, break, 5 mm/min | 4.9 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 3160 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 97 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 3020 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched, 23°C | 715 | J/m | ASTM D 4812 |
| Izod Impact, notched, 23°C | 80 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 9 | J | ASTM D 3763 |
| Multiaxial Impact | 7 | J | ISO 6603 |
| Instrumented Impact Total Energy, 23°C | 14 | J | ASTM D 3763 |
| Izod Impact, unnotched 80*10*4 +23°C | 47 | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*4 +23°C | 8 | kJ/m² | ISO 180/1A |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 102 | °C | ASTM D 648 |
| CTE, -40°C to 40°C, flow | 5.7E-05 | 1/°C | ASTM E 831 |
| CTE, -40°C to 40°C, xflow | 8.3E-05 | 1/°C | ASTM E 831 |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 105 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.31 | g/cm³ | ASTM D 792 |
| Moisture Absorption, 50% RH, 24 hrs | 0.11 | % | ASTM D 570 |
| Mold Shrinkage, flow | 0.51 | % | S-Plastics Method |
| Mold Shrinkage, xflow | 0.59 | % | S-Plastics Method |
| Mold Shrinkage, flow, 24 hrs | 0.5 - 0.51 | % | ASTM D 955 |
| Mold Shrinkage, xflow, 24 hrs | 0.58 - 0.59 | % | ASTM D 955 |
| Density | 1.31 | g/cm³ | ISO 1183 |
| Moisture Absorption (23°C / 50% RH) | 0.16 | % | ISO 62 |
| Source GMD, last updated:2009/01/29 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 80 - 110 | °C |
| Drying Time | 4 - 6 | hrs |
| Drying Time (Cumulative) | 24 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 260 - 280 | °C |
| Nozzle Temperature | 260 - 280 | °C |
| Front - Zone 3 Temperature | 260 - 280 | °C |
| Middle - Zone 2 Temperature | 255 - 275 | °C |
| Rear - Zone 1 Temperature | 245 - 270 | °C |
| Mold Temperature | 80 - 110 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Source GMD, last updated:2009/01/29 | ||
