Sabic Lexan ML104R LEXAN ML104R Resin Is A High Viscosity Multi Purpose Grade. FDA Food Contact Compliant In Limited

100KG
MOQ
*USD
Price
Sabic Lexan ML104R LEXAN ML104R Resin Is A High Viscosity Multi Purpose Grade. FDA Food Contact Compliant In Limited
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Flow Rate, 300°C/1.2 Kgf: 7
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: ML104R
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

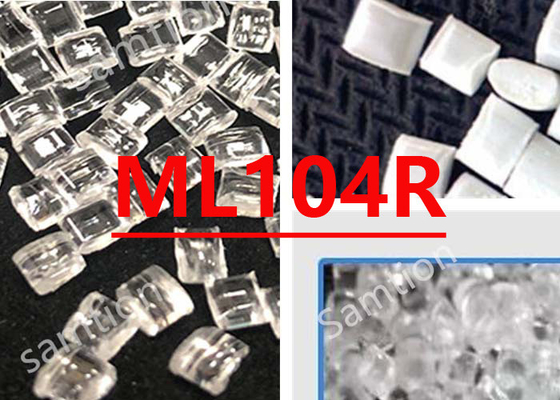

Sabic Lexan  ML104R resin is LEXAN ML104R resin is a high viscosity multi purpose grade. FDA food contact compliant in limited colors.




Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 62 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 68 MPa ASTM D 638
Tensile Strain, yld, Type I, 50 mm/min 7 % ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 135 % ASTM D 638
Tensile Modulus, 5 mm/min 2310 MPa ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 97 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 2340 MPa ASTM D 790
Hardness, Rockwell M 70 - ASTM D 785
Hardness, Rockwell R 118 - ASTM D 785
Taber Abrasion, CS-17, 1 kg 10 mg/1000cy ASTM D 1044
Taber Abrasion, CS-17, 1 kg 10 mg/1000cy SABIC Method
Tensile Stress, yield, 50 mm/min 63 MPa ISO 527
Tensile Stress, break, 50 mm/min 70 MPa ISO 527
Tensile Strain, yield, 50 mm/min 6 % ISO 527
Tensile Strain, break, 50 mm/min 120 % ISO 527
Tensile Modulus, 1 mm/min 2350 MPa ISO 527
Flexural Stress, yield, 2 mm/min 90 MPa ISO 178
Flexural Modulus, 2 mm/min 2300 MPa ISO 178
Hardness, H358/30 95 MPa ISO 2039-1
IMPACT Value Unit Standard
Izod Impact, unnotched, 23°C 3204 J/m ASTM D 4812
Izod Impact, notched, 23°C 907 J/m ASTM D 256
Izod Impact, notched, -30°C 139 J/m ASTM D 256
Tensile Impact, Type S 630 kJ/m² ASTM D 1822
Falling Dart Impact (D 3029), 23°C 169 J ASTM D 3029
Instrumented Impact Total Energy, 23°C 65 J ASTM D 3763
Izod Impact, notched 80*10*4 +23°C 65 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 10 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 95 kJ/m² ISO 179/1eA
Charpy Impact, notched, 23°C 35 kJ/m² ISO 179/2C
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 154 °C ASTM D 1525
HDT, 0.45 MPa, 6.4 mm, unannealed 137 °C ASTM D 648
HDT, 1.82 MPa, 6.4 mm, unannealed 132 °C ASTM D 648
CTE, -40°C to 40°C, flow 6.2E-05 1/°C ASTM E 831
CTE, -40°C to 40°C, xflow 5.7E-05 1/°C ASTM E 831
CTE, -40°C to 95°C, flow 6.84E-05 1/°C ASTM E 831
Specific Heat 1.25 J/g-°C ASTM C 351
Thermal Conductivity 0.19 W/m-°C ASTM C 177
Thermal Conductivity 0.2 W/m-°C ISO 8302
CTE, -40°C to 40°C, flow 6.E-05 1/°C ISO 11359-2
CTE, -40°C to 40°C, xflow 6.E-05 1/°C ISO 11359-2
CTE, 23°C to 80°C, flow 7.E-05 1/°C ISO 11359-2
Ball Pressure Test, 125°C +/- 2°C PASSES - IEC 60695-10-2
Ball Pressure Test, approximate maximum 140 °C IEC 60695-10-2
Vicat Softening Temp, Rate B/50 144 °C ISO 306
Vicat Softening Temp, Rate B/120 145 °C ISO 306
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm 138 °C ISO 75/Be
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 127 °C ISO 75/Ae
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm 124 °C ISO 75/Af
Relative Temp Index, Elec 130 °C UL 746B
Relative Temp Index, Mech w/impact 130 °C UL 746B
Relative Temp Index, Mech w/o impact 130 °C UL 746B
PHYSICAL Value Unit Standard
Specific Gravity 1.2 - ASTM D 792
Specific Volume 0.83 cm³/g ASTM D 792
Density 1.19 g/cm³ ASTM D 792
Water Absorption, 24 hours 0.15 % ASTM D 570
Water Absorption, equilibrium, 23C 0.35 % ASTM D 570
Water Absorption, equilibrium, 100°C 0.58 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm (5) 0.5 - 0.7 % SABIC Method
Melt Flow Rate, 300°C/1.2 kgf 7 g/10 min ASTM D 1238
Density 1.2 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.35 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.15 % ISO 62
Melt Volume Rate, MVR at 220°C/5.0 kg 4 cm³/10 min ISO 1133
Melt Volume Rate, MVR at 300°C/1.2 kg 6 cm³/10 min ISO 1133
OPTICAL Value Unit Standard
Light Transmission, 2.54 mm 88 % ASTM D 1003
Haze, 2.54 mm 1 % ASTM D 1003
Refractive Index 1.586 - ASTM D 542
Refractive Index 1.586 - ISO 489
ELECTRICAL Value Unit Standard
Volume Resistivity >1.E+17 Ohm-cm ASTM D 257
Dielectric Strength, in air, 3.2 mm 14.9 kV/mm ASTM D 149
Relative Permittivity, 50/60 Hz 3.17 - ASTM D 150
Relative Permittivity, 1 MHz 2.96 - ASTM D 150
Dissipation Factor, 50/60 Hz 0.0009 - ASTM D 150
Dissipation Factor, 1 MHz 0.01 - ASTM D 150
Hot Wire Ignition {PLC) 2 PLC Code UL 746A
High Voltage Arc Track Rate {PLC} 2 PLC Code UL 746A
High Ampere Arc Ign, surface {PLC} 1 PLC Code UL 746A
Comparative Tracking Index (UL) {PLC} 2 PLC Code UL 746A
Dielectric Strength, in oil, 3.2 mm 17 kV/mm IEC 60243-1
Relative Permittivity, 50/60 Hz 2.7 - IEC 60250
Relative Permittivity, 1 MHz 2.7 - IEC 60250
Dissipation Factor, 50/60 Hz 0.001 - IEC 60250
Dissipation Factor, 1 MHz 0.01 - IEC 60250
FLAME CHARACTERISTICS Value Unit Standard
UL Recognized, 94HB Flame Class Rating (3) 1.47 mm UL 94
Glow Wire Flammability Index 850°C, passes at 1 mm IEC 60695-2-12
Oxygen Index (LOI) 25 % ISO 4589
Source GMD, last updated:2009/07/20

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 3 - 4 hrs
Drying Time (Cumulative) 48 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 310 - 330 °C
Nozzle Temperature 305 - 325 °C
Front - Zone 3 Temperature 310 - 330 °C
Middle - Zone 2 Temperature 300 - 320 °C
Rear - Zone 1 Temperature 290 - 310 °C
Mold Temperature 80 - 115 °C
Back Pressure 0.3 - 0.7 MPa
Screw Speed 40 - 70 rpm
Shot to Cylinder Size 40 - 60 %
Vent Depth 0.025 - 0.076 mm
Source GMD, last updated:2009/07/20
