Sabic Lexan LR400 Is A Medium Viscosity, Polycarbonate Foam Grade. The Material Is Glass Filled (10%) And Has Excellent

100KG
MOQ
*USD
Price
Sabic Lexan LR400 Is A Medium Viscosity, Polycarbonate Foam Grade. The Material Is Glass Filled (10%) And Has Excellent
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: LR400
Payment & Shipping Terms

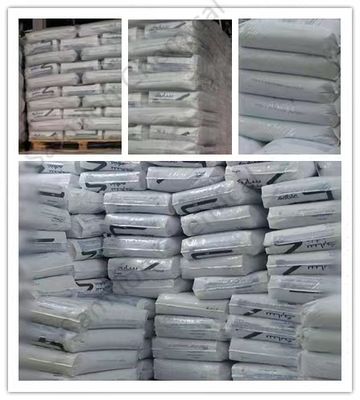

Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

Sabic Lexan  LR400 resin is a medium viscosity, polycarbonate foam grade. The material is glass filled (10%) and has excellent impact performance and good release propertie




Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yield, 5 mm/min 50 MPa ISO 527
Tensile Strain, break, 5 mm/min 10 % ISO 527
Tensile Modulus, 1 mm/min 3300 MPa ISO 527
Flexural Stress, yield, 2 mm/min 90 MPa ISO 178
Flexural Modulus, 2 mm/min 3200 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, notched 80*10*4 +23°C 15 kJ/m² ISO 180/1A
PHYSICAL Value Unit Standard
Mold Shrinkage on Tensile Bar, flow (2) (5) 0.2 - 0.6 % SABIC Method
Density 1.25 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.31 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.13 % ISO 62
Melt Volume Rate, MVR at 300°C/1.2 kg 11 cm³/10 min ISO 1133
Source GMD, last updated:1998/08/04

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 2 - 4 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 290 - 320 °C
Nozzle Temperature 280 - 310 °C
Front - Zone 3 Temperature 290 - 320 °C
Middle - Zone 2 Temperature 280 - 310 °C
Rear - Zone 1 Temperature 270 - 300 °C
Hopper Temperature 60 - 80 °C
Mold Temperature 80 - 120 °C
Source GMD, last updated:1998/08/04








For more information please download the datasheet

Sabic Lexan LR400 Is A Medium Viscosity, Polycarbonate Foam Grade. The Material Is Glass Filled (10%) And Has Excellent 0  Sabic Lexan LR400.pdf
