Sabic Lexan EXL1182C High Flow, UV Stabilized, Polycarbonate Siloxane Copolymer Resin. Notched Izod Ductile To -20C D

100KG
MOQ
*USD
Price
Sabic Lexan EXL1182C High Flow, UV Stabilized, Polycarbonate Siloxane Copolymer Resin. Notched Izod Ductile To -20C D
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Flow Rate, 300°C/1.2 Kgf: 20
UL Recognized, 94V-2 Flame Class Rating (3): 1.5
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: EXL1182C
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

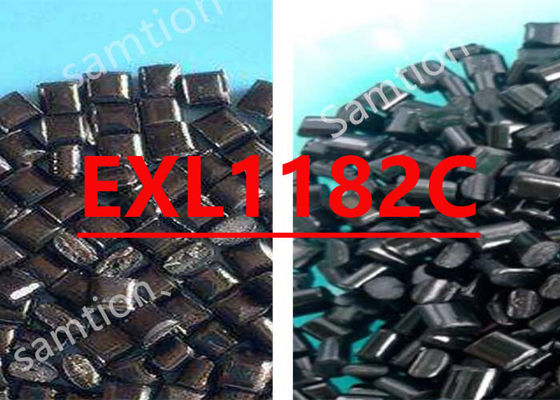

Sabic Lexan  EXL1182C resin is High flow, UV stabilized, polycarbonate siloxane copolymer resin. Notched izod ductile to -20C ductility. Enhanced processability compared to standard PC resins. Available in a range of transparent colors.




Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 59 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 59 MPa ASTM D 638
Tensile Strain, yld, Type I, 50 mm/min 5.4 % ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 125.1 % ASTM D 638
Tensile Modulus, 5 mm/min 2350 MPa ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 96 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 2300 MPa ASTM D 790
Hardness, Rockwell L 92 - ASTM D 785
Tensile Stress, yield, 50 mm/min 59 MPa ISO 527
Tensile Stress, break, 50 mm/min 59 MPa ISO 527
Tensile Strain, yield, 50 mm/min 5.3 % ISO 527
Tensile Strain, break, 50 mm/min 122.5 % ISO 527
Tensile Modulus, 1 mm/min 2460 MPa ISO 527
Flexural Stress, yield, 2 mm/min 91 MPa ISO 178
Flexural Modulus, 2 mm/min 2220 MPa ISO 178
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 737 J/m ASTM D 256
Izod Impact, notched, -10°C 616 J/m ASTM D 256
Izod Impact, notched, -20°C 577 J/m ASTM D 256
Izod Impact, notched, -30°C 426 J/m ASTM D 256
Instrumented Impact Total Energy, 23°C 70 J ASTM D 3763
Izod Impact, unnotched 80*10*3 +23°C NB kJ/m² ISO 180/1U
Izod Impact, unnotched 80*10*3 -30°C NB kJ/m² ISO 180/1U
Izod Impact, notched 80*10*3 +23°C 60 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*3 -30°C 20 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm 60 kJ/m² ISO 179/1eA
Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm 20 kJ/m² ISO 179/1eA
Charpy 23°C, Unnotch Edgew 80*10*3 sp=62mm NB kJ/m² ISO 179/1eU
Charpy -30°C, Unnotch Edgew 80*10*3 sp=62mm NB kJ/m² ISO 179/1eU
THERMAL Value Unit Standard
Vicat Softening Temp, Rate A/50 137 °C ASTM D 1525
HDT, 1.82 MPa, 3.2mm, unannealed 119 °C ASTM D 648
CTE, -40°C to 40°C, flow 6.15E-04 1/°C ASTM E 831
CTE, -40°C to 40°C, xflow 6.45E-04 1/°C ASTM E 831
CTE, -40°C to 40°C, flow 6.15E-04 1/°C ISO 11359-2
CTE, -40°C to 40°C, xflow 6.45E-04 1/°C ISO 11359-2
Vicat Softening Temp, Rate B/50 137 °C ISO 306
Vicat Softening Temp, Rate B/120 139 °C ISO 306
HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm 116 °C ISO 75/Af
PHYSICAL Value Unit Standard
Specific Gravity 1.18 - ASTM D 792
Mold Shrinkage, flow, 3.2 mm 0.4 - 0.8 % SABIC Method
Melt Flow Rate, 300°C/1.2 kgf 20 g/10 min ASTM D 1238
Density 1.18 g/cm³ ISO 1183
Water Absorption, (23°C/sat) 0.29 % ISO 62
Moisture Absorption (23°C / 50% RH) 0.1 % ISO 62
Melt Volume Rate, MVR at 300°C/1.2 kg 19 cm³/10 min ISO 1133
OPTICAL Value Unit Standard
Light Transmission 86 % ASTM D 1003
Haze 1.4 % ASTM D 1003
FLAME CHARACTERISTICS Value Unit Standard
UL Recognized, 94HB Flame Class Rating (3) 1.5 mm UL 94
UL Recognized, 94V-2 Flame Class Rating (3) 2.5 mm UL 94
Source GMD, last updated:04/09/2007

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 3 - 4 hrs
Drying Time (Cumulative) 48 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 295 - 315 °C
Nozzle Temperature 290 - 310 °C
Front - Zone 3 Temperature 295 - 315 °C
Middle - Zone 2 Temperature 280 - 305 °C
Rear - Zone 1 Temperature 270 - 295 °C
Mold Temperature 70 - 95 °C
Back Pressure 0.3 - 0.7 MPa
Screw Speed 40 - 70 rpm
Shot to Cylinder Size 40 - 60 %
Vent Depth 0.025 - 0.076 mm
Source GMD, last updated:04/09/2007



For more information please download the datasheet

Sabic Lexan EXL1182C High Flow, UV Stabilized, Polycarbonate Siloxane Copolymer Resin. Notched Izod Ductile To -20C D 0  Sabic Lexan EXL1182C.pdf
