Sabic Lexan LGN2000

100KG
MOQ
*USD
Price
Sabic Lexan LGN2000
Features Gallery Product Description Request A Quote
Features
Specifications
UL Recognized, 94V-2 Flame Class Rating (3): 0.75
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: LGN2000
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

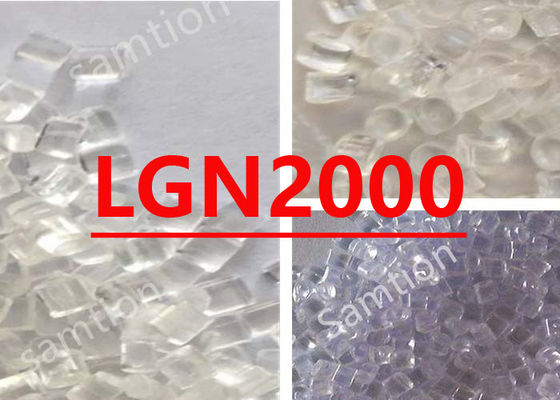

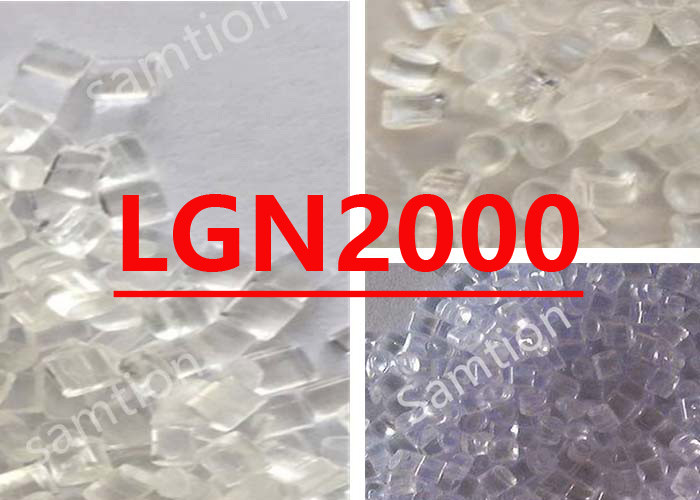

Sabic Lexan  LGN2000 resin




Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yield 86 MPa SABIC - Japan Method
Tensile Strain, break 4 - 6 % SABIC - Japan Method
Flexural Stress 147 MPa ASTM D 790
Flexural Modulus 5290 MPa ASTM D 790
Hardness, Rockwell M 91 - ASTM D 785
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 88 J/m ASTM D 256
THERMAL Value Unit Standard
HDT, 0.45 MPa, 3.2 mm, unannealed 148 °C ASTM D 648
CTE, -30°C to 30°C 2.9E-05 - 5.3E-05 1/°C TMA
PHYSICAL Value Unit Standard
Specific Gravity 1.36 - ASTM D 792
Water Absorption, 24 hours 0.16 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm 0.2 - 0.3 % SABIC Method
ELECTRICAL Value Unit Standard
Surface Resistivity 1.E+16 Ohm ASTM D 257
Relative Permittivity, 50/60 Hz 3.2 - ASTM D 150
FLAME CHARACTERISTICS Value Unit Standard
UL Recognized, 94V-2 Flame Class Rating (3) 0.75 mm UL 94
UL Recognized, 94V-0 Flame Class Rating (3) 1.5 mm UL 94
Source GMD, last updated:02/02/2000

Processing

THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294.
(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.








For more information please download the datasheet

Sabic Lexan LGN2000 0  Sabic Lexan LGN2000.pdf
