Sabic Lexan LGK5030 Glass Reinforced. Flame Retardant.

100KG
MOQ
*USD
Price
Sabic Lexan LGK5030 Glass Reinforced. Flame Retardant.
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: LGK5030
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

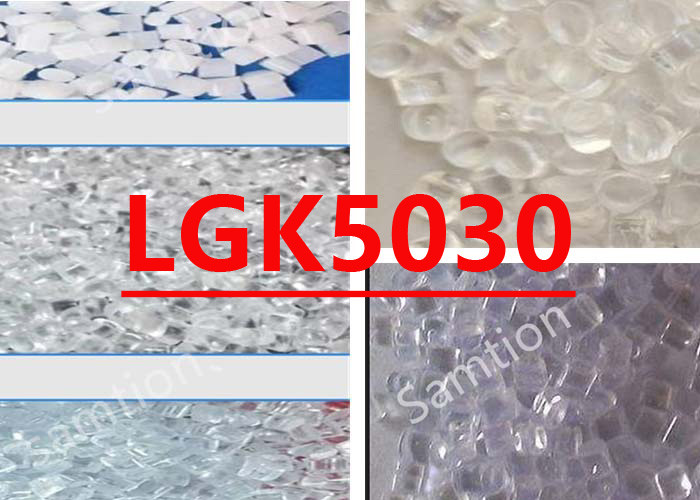

Sabic Lexan  LGK5030 resin is Glass reinforced. Flame retardant.




Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, brk, Type I, 50 mm/min 142 MPa ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 4 % ASTM D 638
Flexural Stress, brk, 1.3 mm/min, 50 mm span 186 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 10700 MPa ASTM D 790
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 122 J/m ASTM D 256
THERMAL Value Unit Standard
HDT, 1.82 MPa, 6.4 mm, unannealed 143 °C ASTM D 648
CTE, -30°C to 30°C, flow 2.16E-05 1/°C ASTM D 696
CTE, -30°C to 30°C, xflow 3.96E-05 1/°C ASTM D 696
PHYSICAL Value Unit Standard
Specific Gravity 1.61 - ASTM D 792
Water Absorption, 24 hours 0.14 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm 0.05 - 0.25 % SABIC Method
Mold Shrinkage, xflow, 3.2 mm 0.1 - 0.3 % SABIC Method
ELECTRICAL Value Unit Standard
Dielectric Strength, in oil, 3.2 mm 16.3 kV/mm ASTM D 149
FLAME CHARACTERISTICS Value Unit Standard
UL Recognized, 94V-1 Flame Class Rating (3) 1.47 mm UL 94
UL Recognized, 94V-0 Flame Class Rating (3) 2.79 mm UL 94
UL Recognized, 94-5VA Rating (3) 3.6 mm UL 94
Source GMD, last updated:01/04/2000

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 3 - 4 hrs
Drying Time (Cumulative) 48 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 315 - 340 °C
Nozzle Temperature 310 - 330 °C
Front - Zone 3 Temperature 315 - 340 °C
Middle - Zone 2 Temperature 305 - 325 °C
Rear - Zone 1 Temperature 295 - 315 °C
Mold Temperature 80 - 115 °C
Back Pressure 0.3 - 0.7 MPa
Screw Speed 40 - 70 rpm
Shot to Cylinder Size 40 - 60 %
Vent Depth 0.025 - 0.076 mm
Source GMD, last updated:01/04/2000








For more information please download the datasheet

Sabic Lexan LGK5030 Glass Reinforced. Flame Retardant. 0  Sabic Lexan LGK5030.pdf
